SCOTT CONNECTION TRAINER

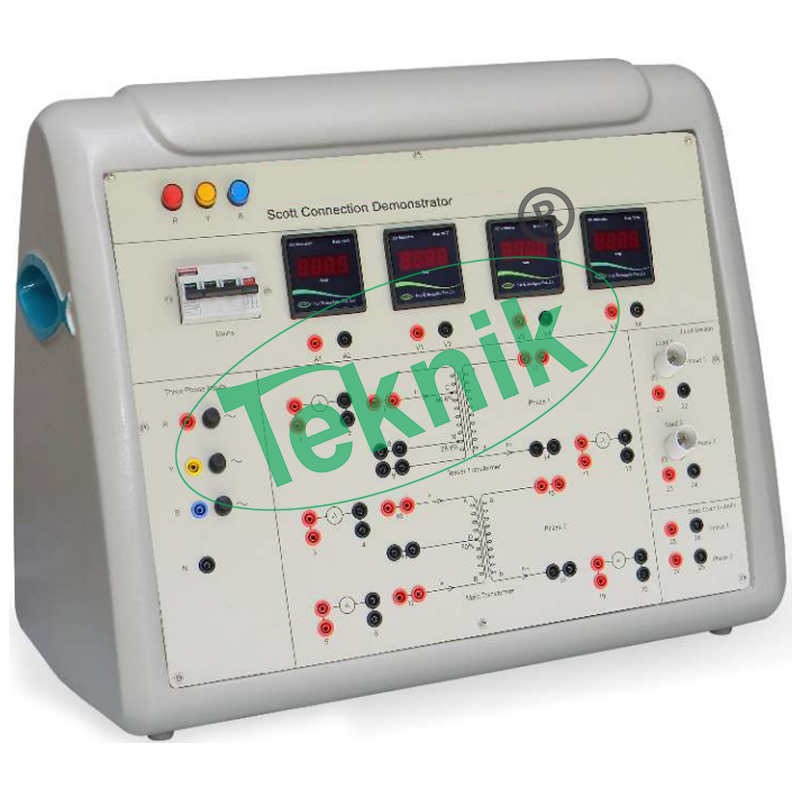

Scott Connection Trainer: MTEE-39
Scott Connection Demonstrator is a vital training system for the Electrical Laboratories. It provides comprehensive learning of Three Phase to Two Phase Conversion in a very simple manner.
It helps to study and analyze the operation of Teaser Transformer and Main Transformer. Students can perform stand-alone operations and observe the two phase step down waveforms on oscilloscope, which will have 90° phase displacement with each other
FEATURES:-
- Main and Teaser Transformer are shown separately
- Two Phase Step down Outputs for Waveform Observation
- Control board consist of high grade FRP material to provide utmost safety to the users
- Equipped with supply indication lamps
- Provided with bulb holder to use load externally
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Attractive Design.
TECHNICAL SPECIFICATIONS:-
- Mains Supply : Three Phase, 415V AC ±10%, 50Hz
- Primary Winding : 200-0-200V ±10%, 50Hz
- Secondary Winding : 0-230V ±10%, 50Hz
- Primary Winding : 0-115.6V (28.9%) ±10%, 50Hz346.4V (86.6%) ±10%, 50Hz400V ±10%, 50Hz
- Secondary Winding : 0-230V ±10%, 50Hz
- Primary Winding : 0-230V ±10%, 50Hz
- Secondary Winding : 0-18V ±10%, 50Hz
- Digital Meters
- AC Voltmeter: 450V (2 nos.)
- AC Ammeter: 5A (2 nos.)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
