SYMMETRICAL AND UNSYMMETRICAL FAULT DEMONSTRATOR
Symmetrical and Unsymmetrical Fault Demonstrator: MTEE-38

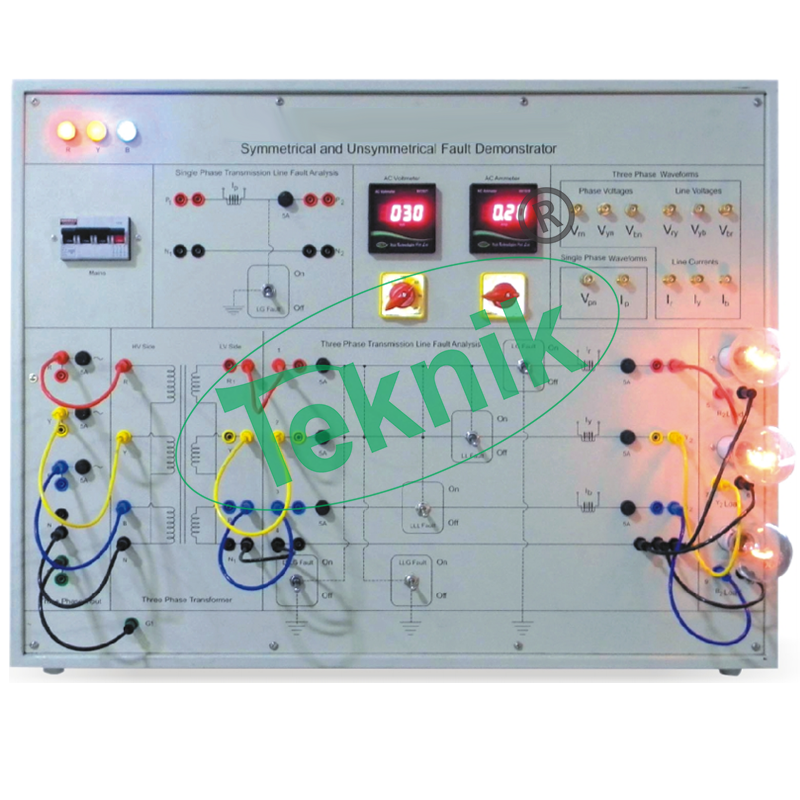

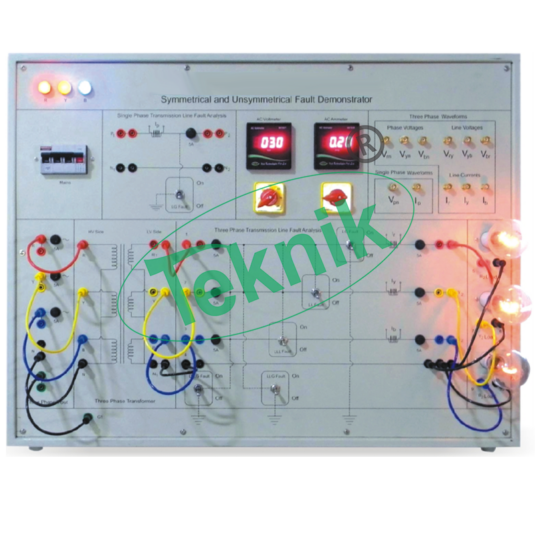

Symmetrical and Unsymmetrical fault Demonstrators a training system designed to explain the basic faults which can occur in a Transmission Line. Using Three Phase step down transformer, the training product reinforces the knowledge of all the basic faults in Transmission Line and corresponding sequence characteristics. Addition to this, it also provides an opportunity to a student to use a wide variety of electrical components such as MCB, Selector Switch, Ammeter, Voltmeter, Three Phase Transformer, Indicating Lamps, Fuse etc. This product along with the learning material represents almost all faults in Power System training course.
FEATURES:-
- Fast response time
- High quality meters
- Test terminals provided to analyze the waveforms
- Line Voltage and Phase Voltage selection facility
- Designed by considering all the safety precautions
- Diagrammatic representation for the ease of connections.
TECHNICAL SPECIFICATIONS:-
- Input Supply : 0- 415V AC ±10%, 50Hz
- Auxiliary Supply : 0-230V AC ±10%
- Three Phase Transformer
- Rating : 1kVA
- Primary Voltage : 415V AC
- Secondary Voltage : 240V AC
- Potential Transformer
- Primary Voltage : 240V AC
- Secondary Voltage : 18V AC
- Current : 500mA
- Current Transformer
- Ratio : 1:1 and 1:2500
- Current : 5A and 20A
- Operating Voltage : 30V
- Fault Current : 5A
- Meters Used
- Voltmeter : 500V AC
- Ammeter : 5A AC
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
