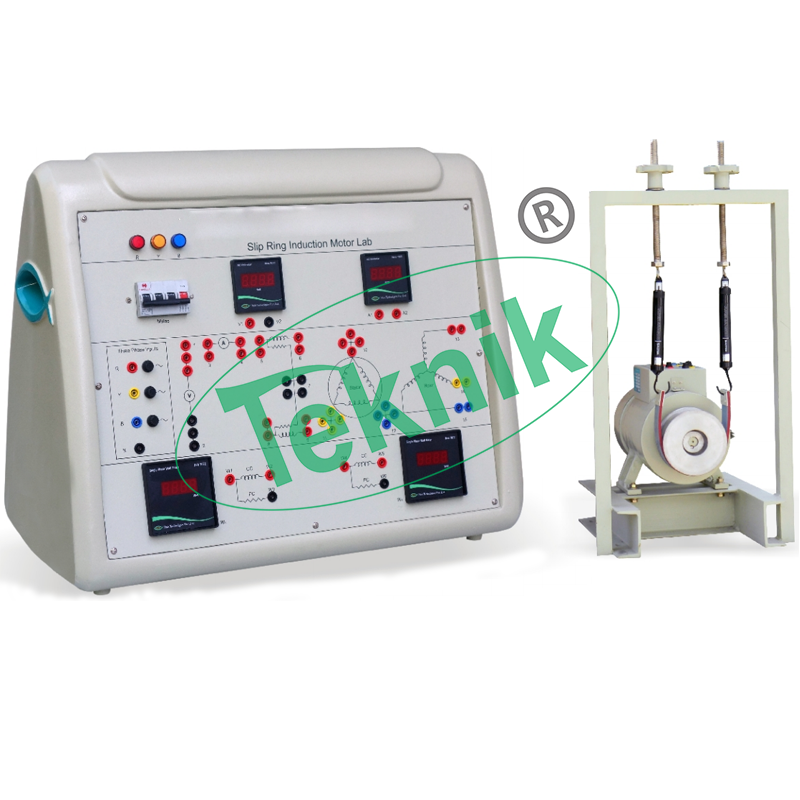

SLIP RING INDUCTION MOTOR LAB
Slip Ring induction Motor Lab: MTEE-13
Slip Ring Induction Motor Lab is an adaptable training system for the electrical laboratories. The product helps to understand the basic concepts and functioning of a Slip Ring Induction Motor.
This system gives practical knowledge about the running and reversing of Induction Motor, study of no load test, block rotor test and load test etc. This product is represented in such an easy way so that each test can be studied differently in proper sequence.
Students can easily observe the test themselves using test points provided in very technical and easy way and get expected results
FEATURES:-
- Machine with Mechanical Loading Arrangement
- Provided with Digital Tachometer
- Control board consist of high grade FRP material to provide utmost safety to the users
- Machine with Class “B” Insulation
- Heavy Duty Base/Channel
- Brake-Drum/Pulley with heat suppression facility
- Equipped with supply indication lamps
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
TECHNICAL SPECIFICATIONS:-
- Mains Supply : Three Phase, 415V ±10%, 50Hz
- Rating : 3HP
- Voltage Rating : 415V ±10%
- Speed : 1440 RPM ±5%
- Digital Meters
- Wattmeter: 2000W (2 nos.)
- AC Voltmeter : 450V
- AC Ammeter : 5A
- Digital Tachometer : 20,000 RPM
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
