LABORATORY C.B.R. APPARATUS

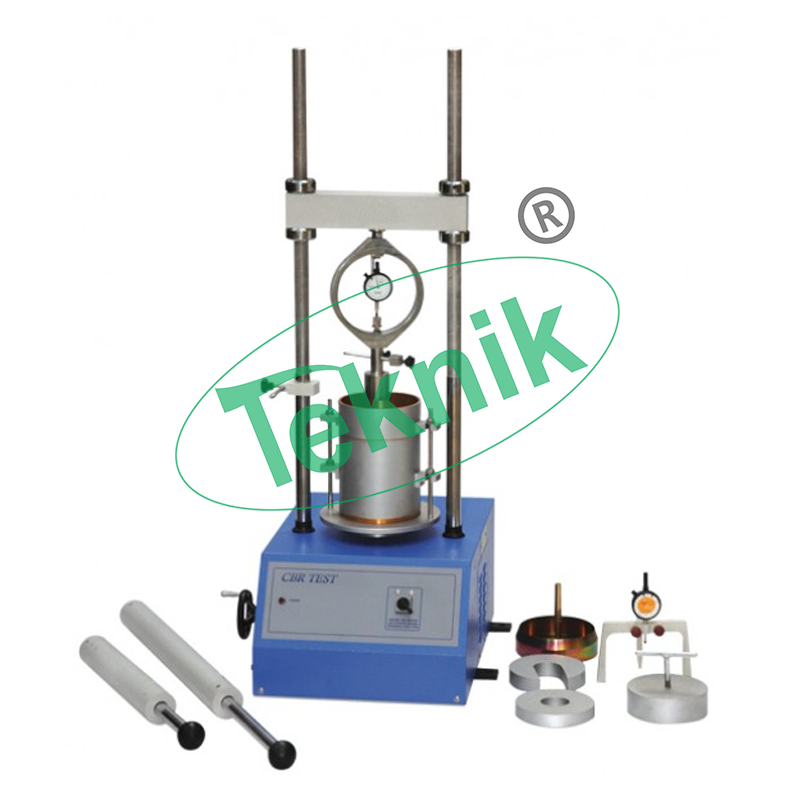

Laboratory C.B.R. Apparatus: MTST-16
- Penetration Piston, face dia 50 mm with adjustable bracket.
- Perforated plate, 148 mm dia with adjustable stem and lock nut gunmetal.
- Displacer block, 148 mm dia X 47.7 mm high with detachable handle.
- Annular metal weight, 2.5 kg, 147 mm dia with 53 mm dia central hole.
- Slotted metal weight, 2.5 kg, 147 mm dia with 53 mm dia slot.
- Metal tripod stand for dial gauges.
- Cutting collar with chromium plating.
- Rammer 2.6 kg weight with a drop of 310mm
- Rammer 4.89 kg with weight with a drop of 410mm.

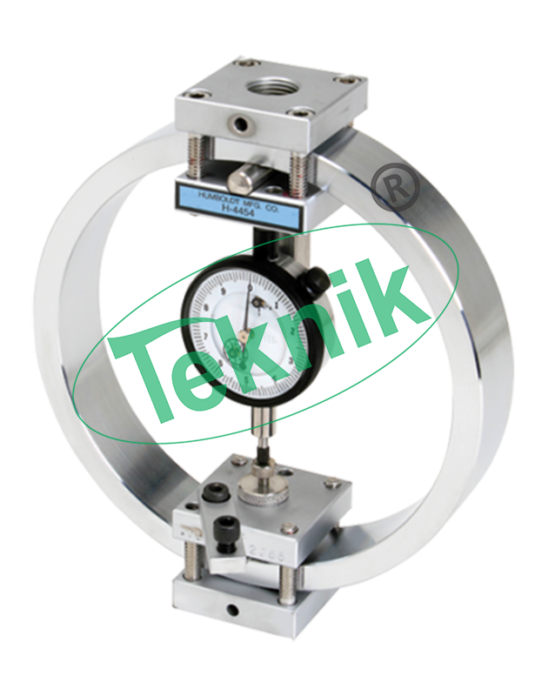

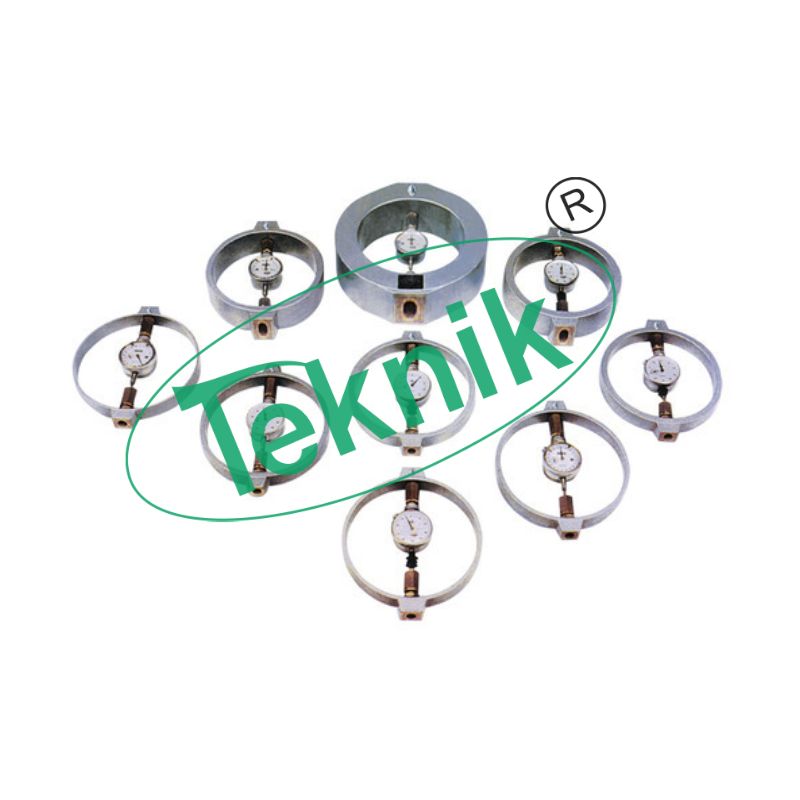

- High sensitivity proving ring 1000 kg capacity fitted with 0.002mm dial gauge with calibration certificate in a nice teakwood case.
- Dial gauge 0.01mm X 25mm travel.
- Annular metal weight 5kg 147 mm dia 53 mm dia central hole.
- Slotted metal weight 5 kg 147 mm dia 53 mm dia slot.
Optional Accessories:-
- C.B.R. Mould 150 mm dia X 175 mm high with extension collar & perforated base plate. Mild steel.
- Made of Gunmetal
- Made of Mild-Steel
- Same as above but Zinc Plated
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
