LABORATORY VANE SHEAR
Laboratory Vane Shear: MTST-17

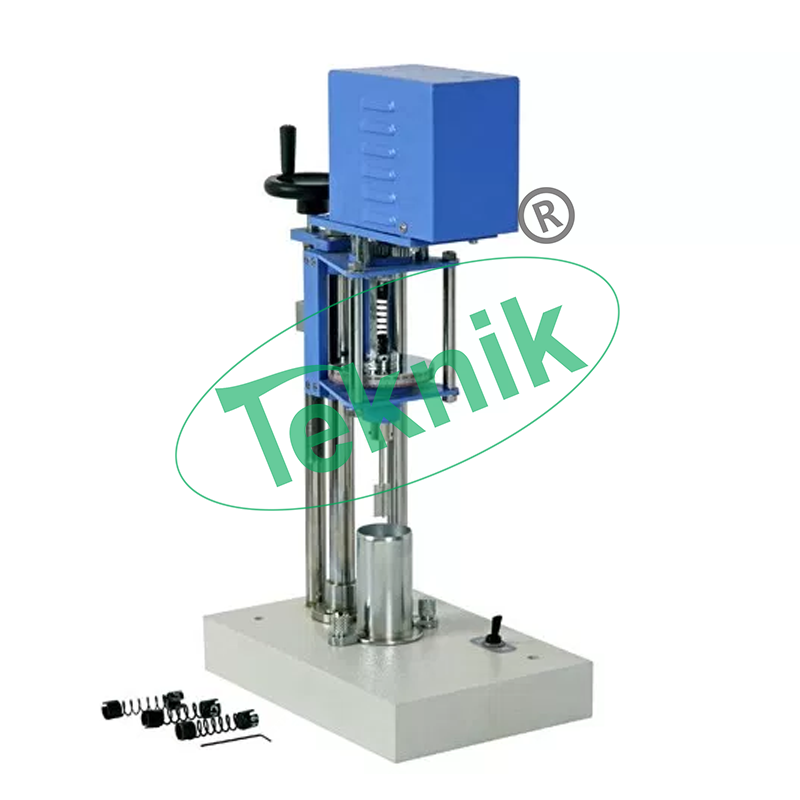

The vane shear test apparatus consists of a torque head mounted on a bracket. Four shear vanes are fixed on a shaft and the shaft is fixed in the lower end of a circular disk graduated in degrees. A torsion spring is fixed between torque head and the circular disk. A maximum pointer is provided to facilitate reading the angle of torque. As the strain indicating pointer rotates when the torque is applied, it moves the maximum pointer, leaving it in position when the torque gets released at failure and the vane returns to its initial position. Turning the torque applicator handles effects rotation of the vane.
Features/ procedure:-
- Clean the apparatus thoroughly.
- Handle to apply torque
- Torque and angular displacement scale
- Vane
- Apply grease to the lead screw.
- Fill-up the sampling mould with remolded soil at required density and moisture content or the undisturbed soil sample.
- Level the surface of the sample with the mould.
- Mount the sampling tube with sample under the base of the unit and clamp it in position.
- Bring the maximum pointer into contact with the strain indicating pointer.
- Note down the initial reading of these pointers on the circular graduated scale.
- Lower the bracket until the shear vanes go into the soil sample to their full length.
- Operate the torque applicator handle until the specimen fails, which is indicated by the return of the strain-indicating pointer or rotation of drum.
- Note down the readings of the maximum pointer.
- The difference between the two readings (initial & final) gives the angle of torque.
- Repeat steps 3 to 8, on a number of test specimens to obtain the average shear strength of the sample.
