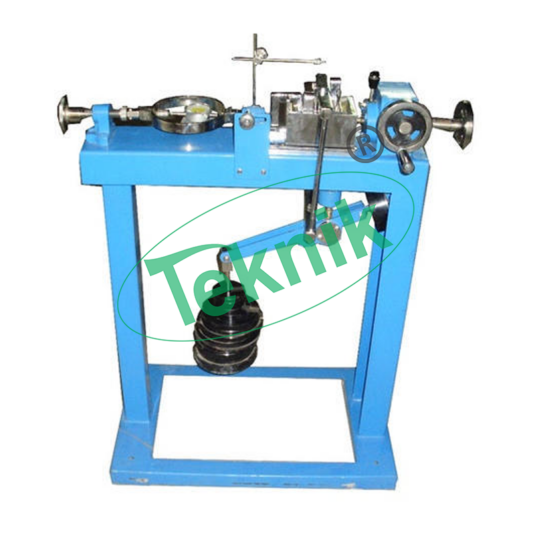

Direct Shear Apparatus – Hand Operated: MTST-08A

Loading Unit:-

Direct shear apparatus-Hand operated and lever system for applying load. Normal stress capacity 8 kg/sq.cm Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading the loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

Features:-

Microprocessor controlled digital stepper motor
Control via the digital display with keyboard
Return datum facility
Load yoke with direct and lever system for applying load.
Normal stress capacity 8 kg/sq.cm.
Load is applied either directly or through a counter balanced detachable lever.
Provision is made for the load to be applied either through a steel ball recessed in the loading pad
Direct through a boss on the pre calibrated loading yoke, the loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

Description

Technical Specification:-

Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates.
One pair of perforated gripper plates, one pair of porous stones, one top loading pad.
Shear box housing Accommodates the Direct Shear Box assembly.
Complete with two ball roller strips.
Specimen Cutter for cutting 60 x 60 x 25 mm specimen from larger samples.
Set of weights to give a normal stress of 3 kg/sq.cm.

Accessories:-

High sensitivity compression proving ring cap 200 kg One Consolidation dia gauge 0.01 mm x 25 mm and one strain dial gauge 0.01 mm x 25 mm and one strain dial gain 0.01mm x 25 mm.

Optional Accessories:-

Additional set of weights to give a normal stress of 5 kg/cm2.
Soil Sampler for 60 mm x 60 mm specimen and test form pad of 50.
Spares Porous stone for 60 mm x 60 mm size sample available in pairs.

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
