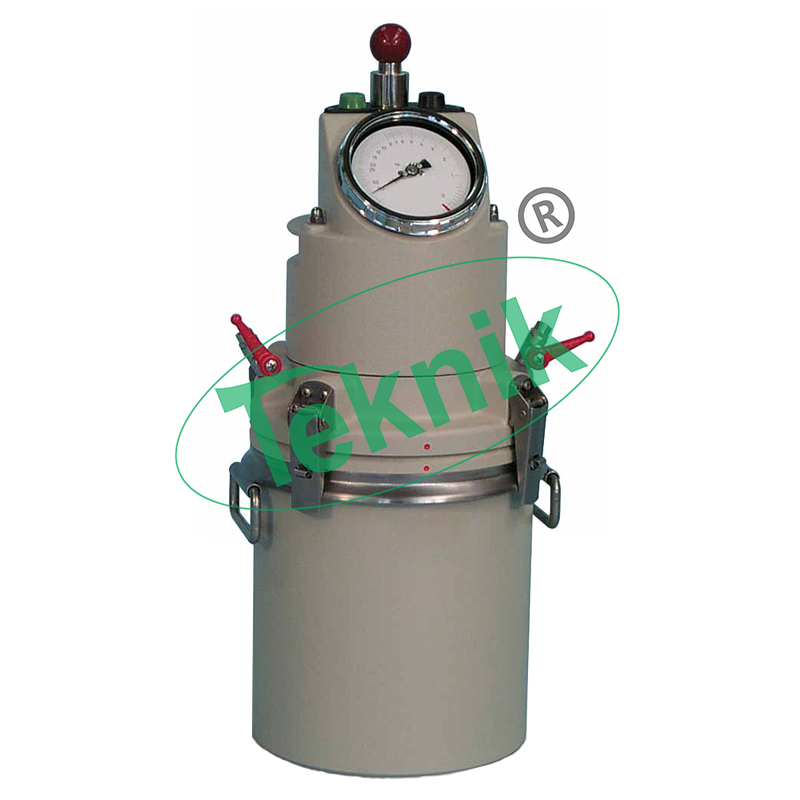

- The apparatus consists of a pressure tight flanged cylindrical measuring bowl of specified volume in accordance with size of aggregate to be tested.
- The bowl is fitted with a removable flanged conical cover assembly with the help of a airtight sealing gasket.
- The conical cover has an air valve and a pet cock for bleeding off the water.
- A transparent cylindrical stand pipe, which is graduated in air content, is fixed to the conical cover assembly.
- Pressure is applied to the specimen with the help of pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe.
- The whole assembly is mounted on a flat base.
- Calibration cylinder with spring clamp
- Tamping rod
- Straight edge
- Rubber mallet and measure.
