SHUNT MOTOR SERIES GENERATOR LAB
Shunt Motor Series Generator Lab: MTEE-32

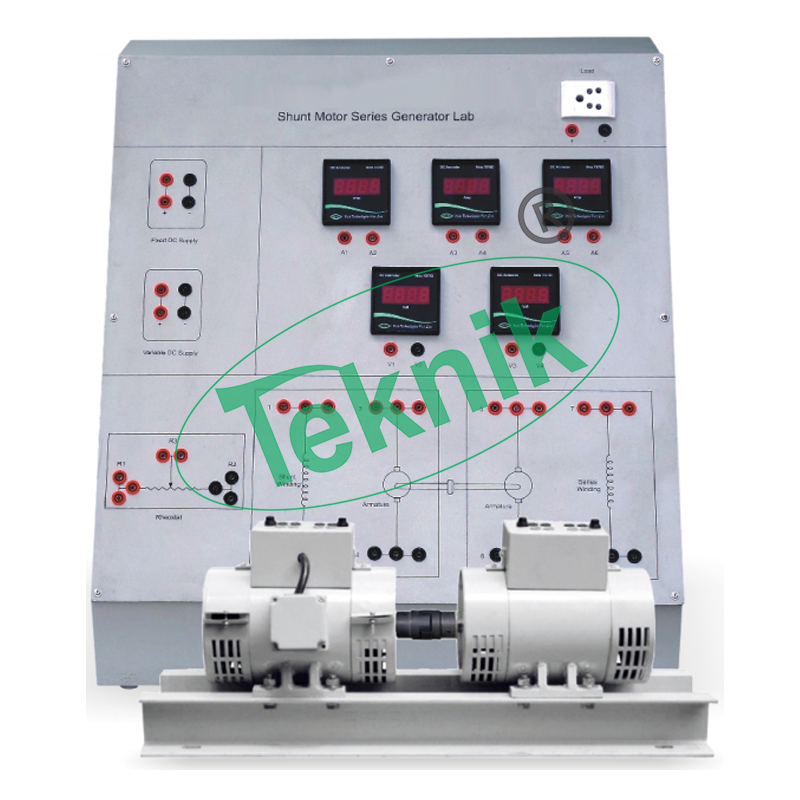

Shunt Motor Series Generator Lab is an elite training system for the Electrical laboratories. This product helps students to understand basic operations of DC Series Generator.
It can aptly be used for performing various experiments like Working of Generator, Analysis of Magnetic Characteristic and also efficiency at any desired load. Separate terminals of armature and field windings are provided on top of the machine.
Starter and rheostat terminals are provided on the panel so that these can be connected externally to the circuit. The product thus provides complete understanding of experiments with Shunt Motor and Series Generator.
FEATURES:-
- Electrical Loading Arrangement
- Flexible Shaft Coupling Arrangement
- Provided with Digital Tachometer
- Control board consist of high grade FRP material to provide utmost safety to the users
- Machine with Class “B” Insulation
- Heavy Duty Base/Channel
- Terminals provided to use the optional externally
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Compact Design
TECHNICAL SPECIFICATIONS:-
- DC Motor
- Type : Shunt
- Rating : 2HP
- Voltage Rating : 220V ±10%
- Speed : 1500 RPM
- Insulation : Class ‘B’
- DC Generator
- Type : Series
- Rating : 1HP
- Speed : 1500 RPM
- Insulation : Class B
- Digital Meters
- DC Voltmeter: 300V (2 nos.)
- DC Ammeter: 5A (2 nos.), 10A (1no.)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
