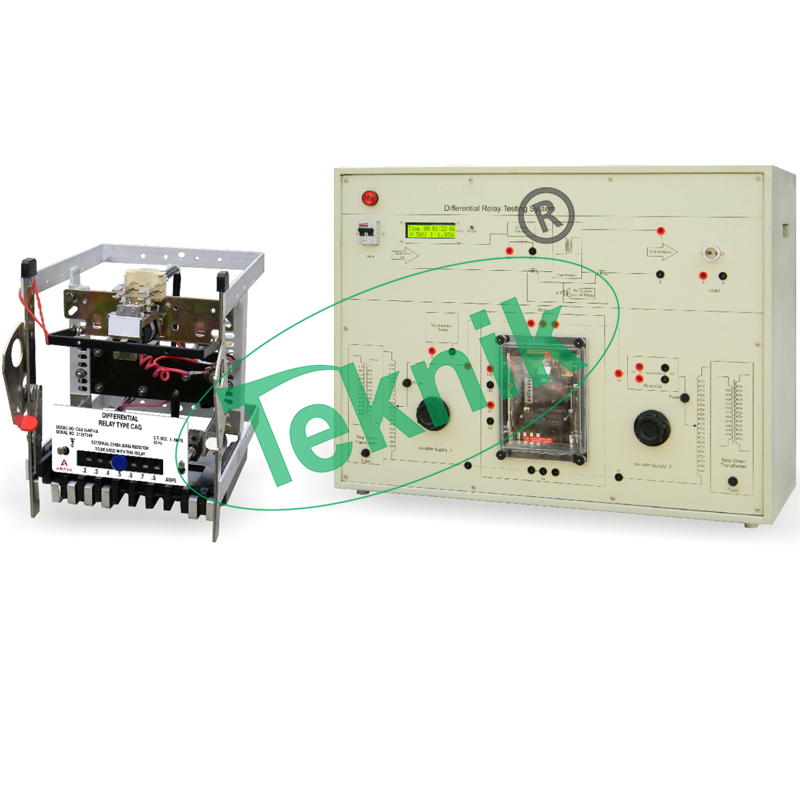

Differential Relay Training System is a very significant product from power System lab for Electrical students. Differential Relay has operating coil connected in series with small choke and capacitor forming a series resonant circuit.
In a differential protection scheme Students can learn the phenomena of differential relay like under normal conditions, or for a fault outside of the protected zone, current i1 is equal to current i2.
Therefore the currents in the current transformers secondary’s are also equal, i.e. i1=i2 and no current flows through the current relay. If a fault develops inside of the protected zone, currents i1 and i2 are no longer equal, therefore i1 and i2 are not equal and there is a current flowing through the current relay.
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
