FLASH POINT TESTING APPARATUS

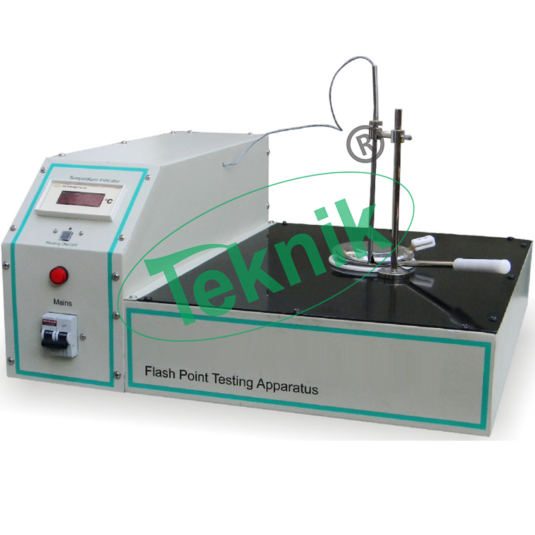

Flash Point Testing Apparatus: MTEE-45
Flash Point Testing Apparatus is a unique testing system for the Electrical laboratories design to determine the lubricant’s volatility and fire resistance in terms of flash and fire point and hence predetermine the reliability of the transformer oil in a practical manner.
The flash point of a volatile liquid is the lowest temperature at which it can vaporize to form an ignitable mixture in air. The fire point is defined as the highest temperature at which the vapor continues to burn after being ignited. There is an inbuilt standardized fully automatic unit so that students can make connection by themselves. Graphical LCD has been provided for better resolution and accuracy makes product complete understanding and interesting.
FEATURES:-
- Fully automatic control unit
- Microcontroller based Design
- Equipped with temperature indicator
- Provided with Brass machined oil cup with handle
- Electrically operated heater
- Suitable to work on 230V AC mains
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections.
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230V AC ±10%, 50Hz
- Temperature Indicator : 1200°C
- Induction Heater Specification
- Rated Power : 1900W
- Power Adjustment Range: 120W to 1900W
- Temperature : 400°C
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
