UNIVERSAL AUTOMATIC COMPACTION APPARATUS
Universal Automatic Compaction Apparatus: MTST-38

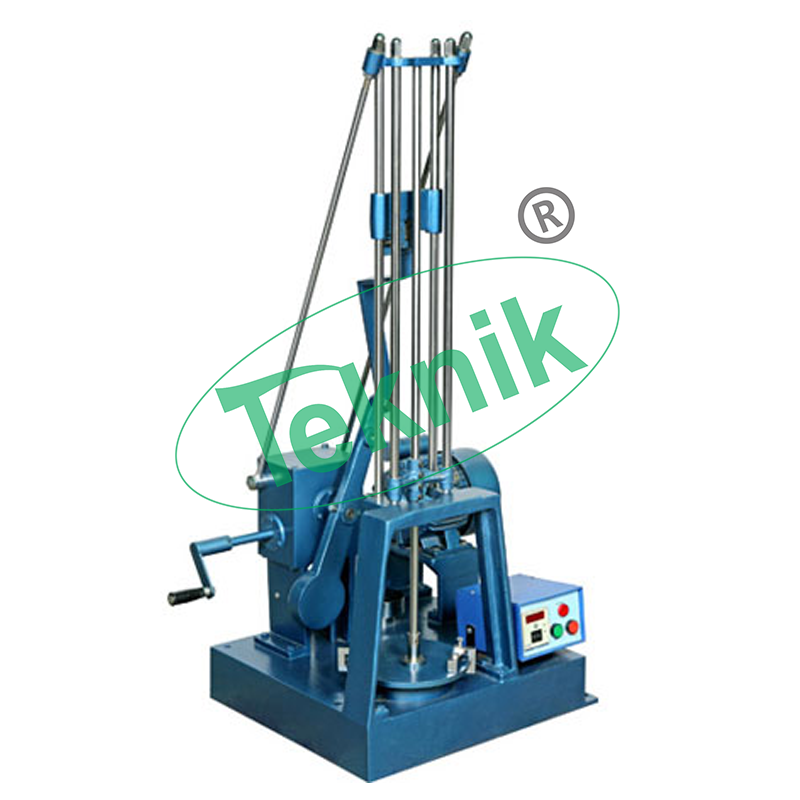

It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm dia moulds. Two sets of rammers are provided, one of 2.6kg. And the other of 4.89 kg arranged for 310mm and 450mm fall respectively. For compaction soil into 150mm dia moulds, 100mm face dia rammers having weight of 4.89Kg is used. Whereas for 100mm dia moulds, they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer reaches the required height the pawl release the rammer, which falls freely on soil surface. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to be fitted to the rotating base plate of the instrument which makes 1/5th revolution per operation. Operation on 230 volts, 50 cycles, single phase, A.C. supply, Moulds are to be ordered separately.
Moulds for above:-
- C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of mild steel.
- C.R.B. Mould, 150 mm dia X 175 mm high with extension collar and base plate. made of gunmetal.
- Proctor mould, 100 mm dia X 127.3 mm high X 1000cc volume, with collar & base plate Mild Steel.
- Proctor mould, 150 mm dia X 127.3 mm high X 2250cc volume with collar & base plate. Mild Steel.
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
