DC SERIES MOTOR SHUNT GENERATOR LAB

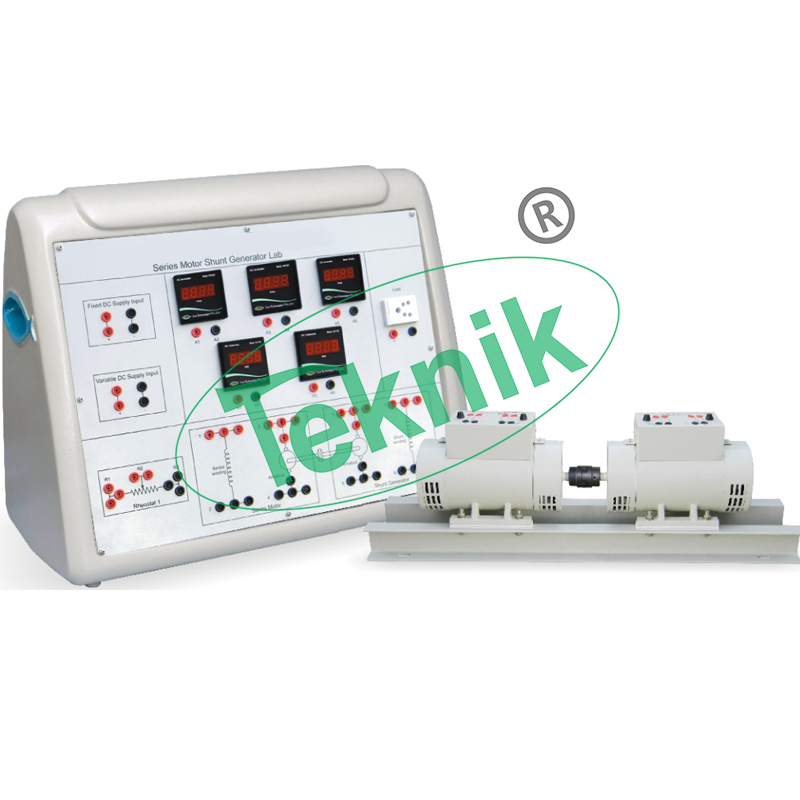

DC Series Motor Shunt Generator Lab: MTEE-32A
DC Series Motor Shunt Generator Lab is a significant training system for Electrical Machines Laboratories designed to demonstrate the operational working and characteristic of DC Shunt Generator under different loading conditions.
DC Shunt Generator is a type of Generator whose field winding and armature winding are connected in parallel and acquire properties to behave as almost constant speed DC Machine includes various experiments to be conducted such as operational working behavior of DC Shunt Generator, Open Circuit Characteristic, Internal and External Characteristics etc.
Diagrammatic representations are provided on the control set-up so that students can make connections by their own includes digital panel meets to obtain precise results. Separate terminals are provided to connect the optional accessories externally to the control setup with ease.
FEATURES:-
- Provided with Digital Tachometer
- Electrical Loading Arrangement
- Flexible Shaft Coupling Arrangement
- Control board consist of high grade FRP material to provide utmost safety to the users
- Good quality digital panel meters
- Designed by considering all the safety measures
- Specially designed patch cords for safety purpose
- Diagrammatic representation for the ease of connections
TECHNICAL SPECIFICATIONS:-
- DC Motor
- Type : DC Series
- Power Rating : 2HP
- Voltage Rating : 220V, ±10%
- Speed : 1500 rpm ±5%
- DC Machine
- Type : DC Shunt
- Power Rating : 1HP
- Rated Current : 4.1A
- Speed : 1500 rpm ±7.5%
- Insulation Class : “B”
- Digital Meters
- DC Voltmeter: 300V (2 nos.)
- DC Ammeter: 10A, 5A (2 nos.)
- Digital Tachometer : 20,000 RPM
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
