LIQUID LIMIT DEVICE

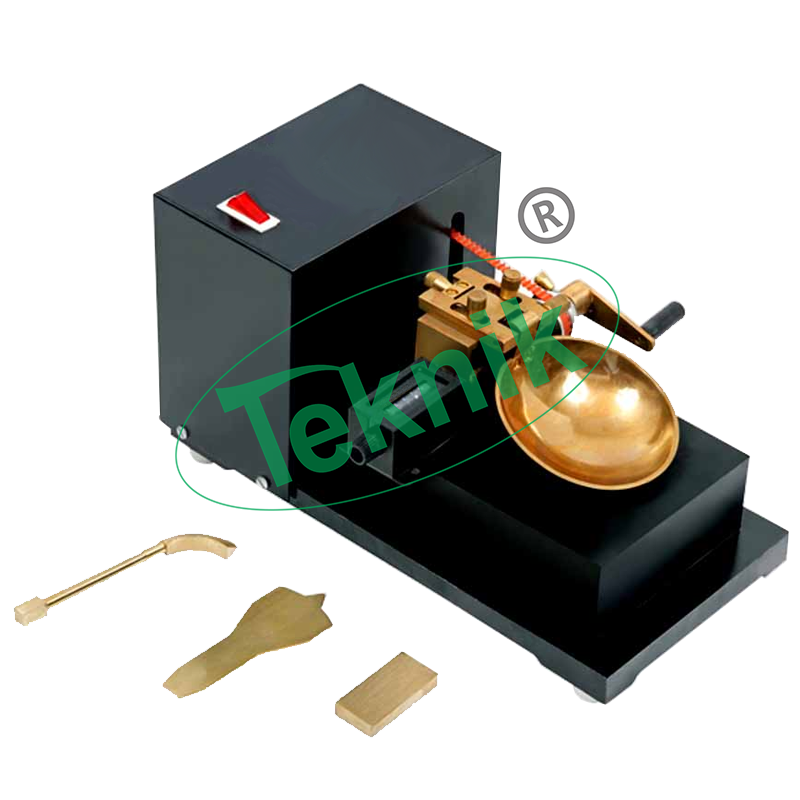

Liquid Limit Device: MTST-19
Casagrande method in mechanical form is known as Liquid Limit Method and has been in use for soil mechanics for a number of years. The Liquid Limit data of soils is useful to correlate mechanical properties of soil, such as compressibility and lower shear strength. Liquid Limit is the water content at which soil passes from zero strength to an infinitesimal strength, hence the true value of liquid limit cannot be determined. For determination purpose liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1. 25 cm under an impact of 25 blows in a standard liquid limit apparatus. The soil at the water content has some strength which is about 0. 17 n/cm. Sq. (17gms/sq. Cm) At this water content soil just passes from liquid state to plastic state.
Technical Specification:-
- Consists of a brass cup held on an adjustable bracket.
- The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action.
- Complete with one casagrande-grooving tool, one grooving tools and a height gauge block with counter.
- Material for Construction Stainless steel
- Power Supply 230 V A.C
- Single Phase, 50 Cycles
- RPM 120
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
