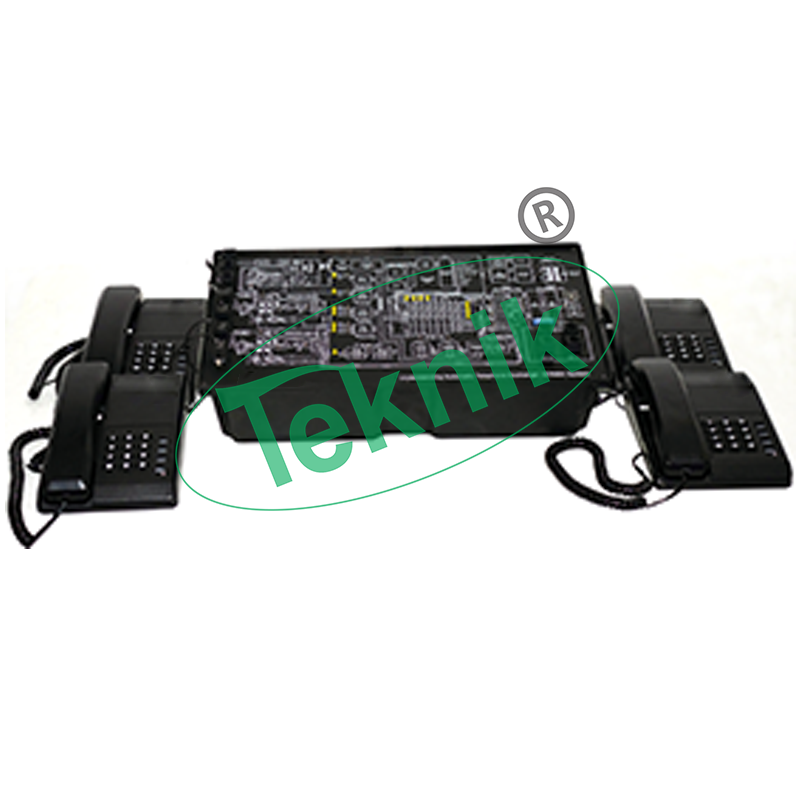

Understanding Automatic Telephone Exchange/Epabx System: MTEV-09

Understanding Automatic Telephone Exchange / EPABX System is an ideal training platform to learn the operation of Automatic Telephone Exchange/ EPABX. It is demonstrator cum training system specifically designed for the comprehensive practical study on Automatic Telephone Exchange / EPABX System for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. This didactic product develops the sense of investigation within the student and familiarizes him with repair techniques/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of EPABX System is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

FEATURES:-

• Study of switching phenomena
• Study of various detection phenomena
• Study of traffic units
• Complete Block diagram of EPABX system on-board
• Easy identification of different sections and signal flow through LED visualizations
• Easy measurement of voltages and observation of waveforms
• Soldering free fault creation and troubleshooting

TECHNICAL SPECIFICATIONS:-

• Number of Inputs : 3 Trunk / Direct Lines
• Number of Extension : 8 Lines
• Technology : CMOS Cross Point Switching for Speech Communication (Microcontroller based)
• Standard Features: Tones such as Dial, Busy, Ring, Music on Hold etc.
• Dialing : DTMF and Pulse Dialing (Speed: 10pps; Ratio 66.33%; IDP 800ms)
• Program Memory : 512 kb EEPROM
• Protection : Op to- isolation for input and extension lines
• Loop Resistance : Extension -600 Ohms, Co-line- 1200 Ohms
• Cross Talk Attenuation : >70 DBM
• Switched Faults : 8 no’s
• Test Points : 40 no’s
• Fuse : 1 A
• Main Supply : 230V AC ± 10%, 50/60Hz (110V AC on request)
• Operating Conditions : 0-40 C, 80% RH

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.**
