Bernoulli’s Theorem Demonstration: MTFM-21

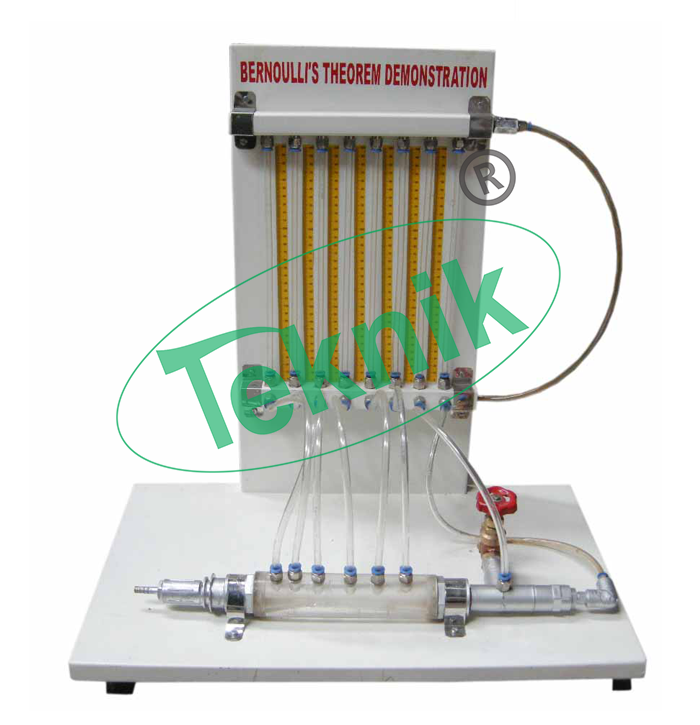

The test section consists of a classical Venturi machined in clear acrylic. A series of wall tapings enable measurement of the static pressure distribution along the converging and diverging duct. A total head tube is provided to traverse along the centre line of the test section. These tapings are connected to a manometer bank incorporating a manifold with an air bleed valve.

Pressurization of the manometers is facilitated by a hand pump. The test section is arranged so that the characteristics of flow through both a converging and diverging section can be studied. Water is fed through a hose connector and is controlled by a flow regulator valve at the outlet of the test section. The Venturi can be demonstrated as a means of flow measurement and the discharge coefficient can be determined.

Category: Fluid Mechanics Equipment

Description
Product Enquiry

Description

DEMONSTRATION CAPABILITIES:-

Demonstrating Bernoulli’s Theorem and its limitations
Directly measuring the static and total head distribution along a Venturi tube
Determining the meter coefficient at various flow rates

TECHNICAL SPECIFICATIONS:-

Manometer range: 0-300mm
Number of manometer tubes: 8
Throat diameter: 10.0mm
Upstream diameter: 25.0mm
Upstream taper: 14°
Downstream taper: 21°
Venturi section machined from clear acrylic
Seven static pressure tapings plus a total head measurement
Flow control valve
Manometer board with eight tubes
Quick-release fitting for easy connection to Hydraulics Bench
Educational software available as an option

** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
