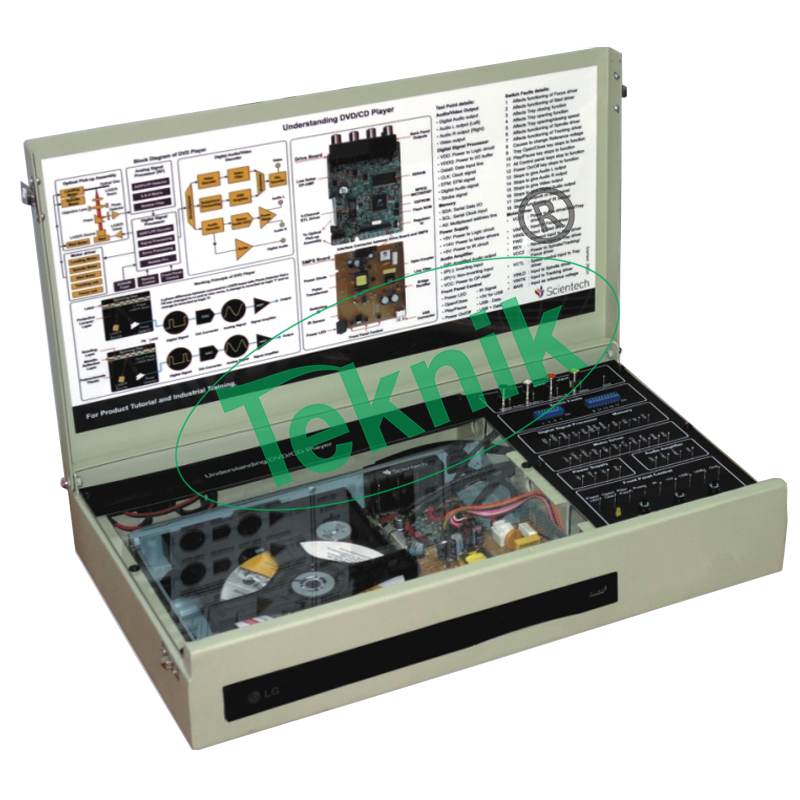

Understanding DVD/CD Player: MTEV-06

An Understanding DVD/CD Player is a simplified training platform to learn the operation of Optical Disc Player. It is demonstrator cum training system specifically designed for the comprehensive practical study on Optical Disc player for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. This didactic product develops the sense of investigation within the student and familiarizes him with repair/design techniques.

One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of DVD/CD Player is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

FEATURES:-

• Manual and Remote Control Operation
• DVD/ VCD/CD/ MP3/ JPEG/ WMA Playback
• PAL/ NTSC video formats
• USB reader (2.0)
• Composite video output
• Complete block diagram of a DVD/CD Player on-board
• The different circuit sections of DVD/CD Player exposed on PCB
• Easy identification of different parts and components of the system at a glance
• Easy measurement of voltages and observation of waveforms on test points
• Soldering free fault creation and troubleshooting

TECHNICAL SPECIFICATIONS:-

• Signal System : PAL/ NTSC
• Playable Discs formats : DVD-Video; DVD+/-R/RW; Audio CD; CD-R/RW (All 8 cm/12 cm discs)
• File Compatibility : .avi/.mpg/.mpeg/.mp3/.wma/.jpg/.jpeg
• Sampling frequency : 8 to 48 KHz (MP3), 32 to 48 KHz (WMA)
• Bit Rate : 8 to 320 kbps(MP3), 32 to 190 kbps (WMA)
• LASER : Semiconductor LASER
• LASER Wave Length : 650/635 nm
• Modulation : EFM
• On-Screen Display : Title number, Chapter number, Playing time, Channel, Language, Subtitle, Angle
• Video Output : 1Vpp, 75 , Sync negative, RCA jack x 1
• Audio Output : 2Vrms (1KHz,0dB),600Ω, RCA jack (L/R) x1
• Panel Control : Power On/Off, Open/Close, Play/Pause
• Remote Control Function : Power, Stop, Open/Close, Play, Pause/Step, Scan, Skip, Title, Navigation keys, Audio, DVD
• Menu, Display, Enter, Return, Zoom, etc.
• Test Points: 40 nos.
• Switched Faults: 18 nos.
• Remote Control Battery : 1.5V, (R03, AAA size)
• USB Reader : 1 X USB 2.0
• Mains Supply : 110-260V AC ± 10%, 50/60Hz
• Power Consumption : 11W
• Bus Power Supply (USB) : DC 5V, 500 Ma
