RADIAL AND RING MAIN DISTRIBUTION SYSTEM
Radial and Ring main Distribution System: MTEE-50

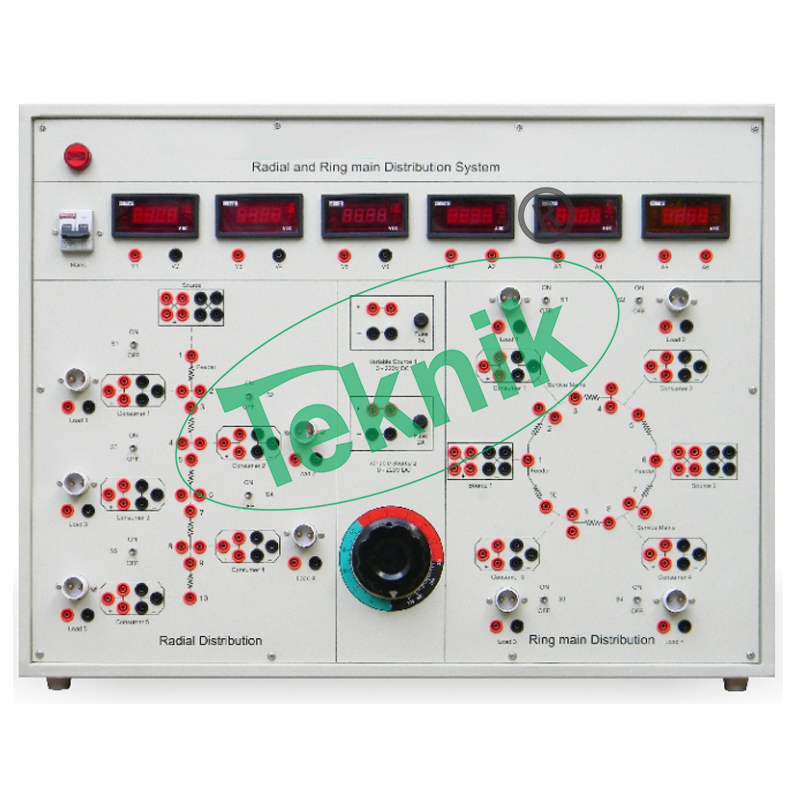

Radial and Ring Main Distribution System is specially designed to illustrate the working phenomenon of Distribution System configured as Radial and Ring Main Distribution System.
Distribution System is the part of electric power system which connects the high voltage transmission networks to the low voltage consumer service points. Distribution Systems should be designed in a way that Voltage variation at consumer terminals must be maintained with in ±5% provides complete learning content to develop Ring and Radial Distribution System manually.
The Voltage regulation is studied by performing experiments and comparison. It includes inbuilt DC Variable Supply with adequate protections; precise digital meters are used along with separate sections for Radial and Ring Main Distribution System so that students can understand the significance of these systems in a proper sequence.
FEATURES:-
- Inbuilt DC Variable Supply
- Digital Panel Meters
- Separate sections for Ring Main and Radial Distribution System
- Facility to configure balanced and unbalanced network
- Equipped with Supply Indication Lamp
- Designed by considering all the safety standards
- Exclusive and Attractive design
- Equipped with bulb holders to use load
- Diagrammatic representation for the ease of connections.
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230V ±10%V AC, 50Hz
- Inbuilt DC Output Supply
- Rated Voltage : 0 – 220V ±10% (Variable)
- Rated Current : 2A
- Transformer
- Rating : 0.5kVA
- Primary Voltage : 230V
- Secondary Voltage : 150V
- Input : 230V
- Output : 0-270V
- Current : 2A
- Digital DC Voltmeter (3 Nos.)
- Range : 20-500V
- Display Resolution : 1V
- Digital DC Ammeter (3 Nos.)
- Range : 0-5A
- Display Resolution : 0.01A
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
