FIELD TEST OF DC SERIES MACHINE
Field Test of DC Series Machine: MTEE-33

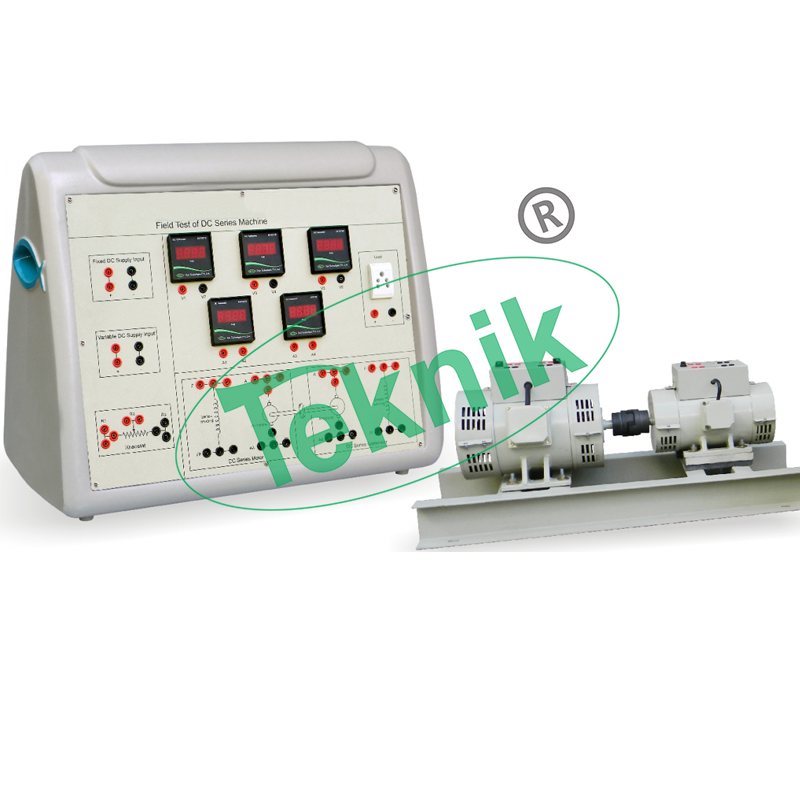

Field Test of DC Series Machine is an important training system for Electrical Machine Laboratories. It is designed to provide the thorough study of DC Series Machine under different excitation and loading conditions.
Field test is the method to calculate the efficiency of DC Series Motor and Generator at any desired load also includes experiments such as Open Circuit Characteristic, Internal and External Characteristic of DC Series Generator in an easiest manner consists of good quality digital panel meters to obtain precise results. Separate terminals are provided to connect the optional accessories externally to the control panel with ease.
Control panel comes with full descriptive mimic diagram for comprehensive learning of DC Series Machine. All the necessary protective schemes are being implemented to avoid fault or danger and hence product will assist users to enhance their practical knowledge with safety.
FEATURES:-
- Provided with Digital Tachometer for RPM measurement
- Control board consist of high grade FRP material to provide utmost safety to the users
- Electrical Loading Arrangement
- Flexible Shaft Coupling Arrangement
- Rust free powder coated control panel
- Good quality digital panel meters
- Heavy duty base/channels
- Designed by considering all the safety measures
- Specially designed patch cords for safety purpose
- Diagrammatic representation for the ease of connections
- Machines with class “B” insulation.
TECHNICAL SPECIFICATIONS:-
- DC Machine
- Type : DC Series
- Power Rating : 2HP
- Voltage Rating : 220V ±10%
- Speed : 1500 RPM ±5%
- DC Machine
- Type : DC Series
- Power Rating : 1HP
- Speed : 1500 RPM
- Digital Meters
- DC Voltmeter: 300V, (3 no’s).
- DC Ammeter: 10A.
- DC Ammeter: 5A.
- Digital Tachometer : 20,000 RPM
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
