TOTAL STATION

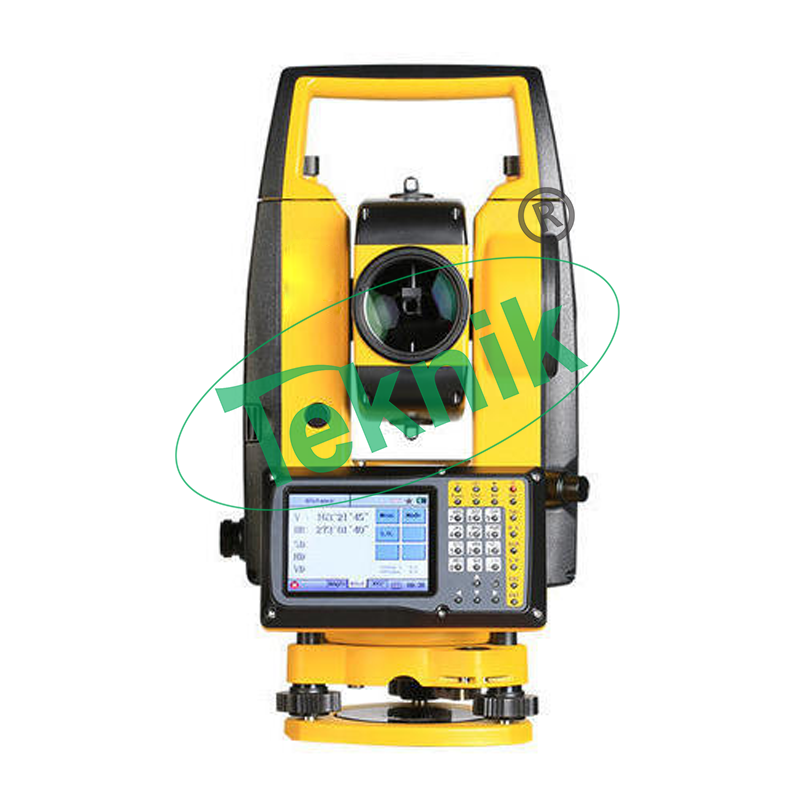

Total Station : MTSE-08A

It may be defined as the electronic/optical instrument used in modern surveying and building construction that uses electronic transit theodolite in conjunction with electronic distance meter (EDM).It is also integrated with microprocessor, electronic data collector and storage system. The instrument is used to measure sloping distance of object to the instrument, horizontal angles and vertical angles. This Microprocessor unit enables for computation of data collected to further calculate the horizontal distance, coordinates of a point and reduced level of point. Data collected from total station can be downloaded into computer/laptops for further processing of information. Total stations are mainly used by land surveyors and civil engineers, either to record features as in topographic surveying or to set oust features (such as roads, houses or boundaries). They are also used by archaeologists to record excavations and by police, crime scene investigators, private accident Reconstructions and insurance companies to take measurements of scenes.

Features:-

Electric Wire Measurement
Construction Measurement
Tunnel Measurement
Shipbuilding Measurement
Dam Measurement
House Measurement
Powerful Calculation – Simple alignment parameter input, real time calculation. Various calculation modes, including positive and negative measurement of coordinates, whole calculation, back break calculation.
Simple and quick Operation – Tag list-style operation, simple and quick input. Graphical display for all data
System seamlessly compatible – Generated files can be copied to the onboard system and used directly. The received real test data of cross section from on board system can be used directly for calculation.
Various formats output-Supporting dxf, doc, xls, bmp and many other formats
Short focusing distance
Optimal for close range work
Accurate results

Description

Technical Specification:-

Distance Measurement

Max. Range for Reflectroless: 350m
Prism : 5.0km
Prism : 6.0Km
Mini Prism (φ25.4mm):800m

Accuracy

Reflectroless 5mm+3ppm Reflector 2mm+2ppm
Reading: Max. 99999999.999m; Min.1mm
Measuring Time- Reflectroless: Fine Mode :< 1.2s; Tracking Mode :<0.5s. Reflector: Fine Mode:<1.2s; Tracking Mode:<0.5s IR Sheet Mode: <1.2s

Angle Measurement

Minimum Reading: 1″ /5″ optional
Accuracy: NTS-342R – 2″, NTS-345R – 5″
Detection Method: Horizontal: Dual, Vertical: Dual

Telescope

Image: Erect
Tube Length: 154 mm
Magnification: 30 xs
Minimum Focusing Distance: 1m
Minimum Focus: 3″
Display
Dual sides with graph
Built-in Software with various outstanding surveying programs, Mapping Genius and Engineering Genius evolved your TS into a more powerful product

Accessories:-

Wooden Tripod
Single Prism System
Aluminum Tripod
Prism Pole & Prism System
Staff rod
