DUMPY LEVEL

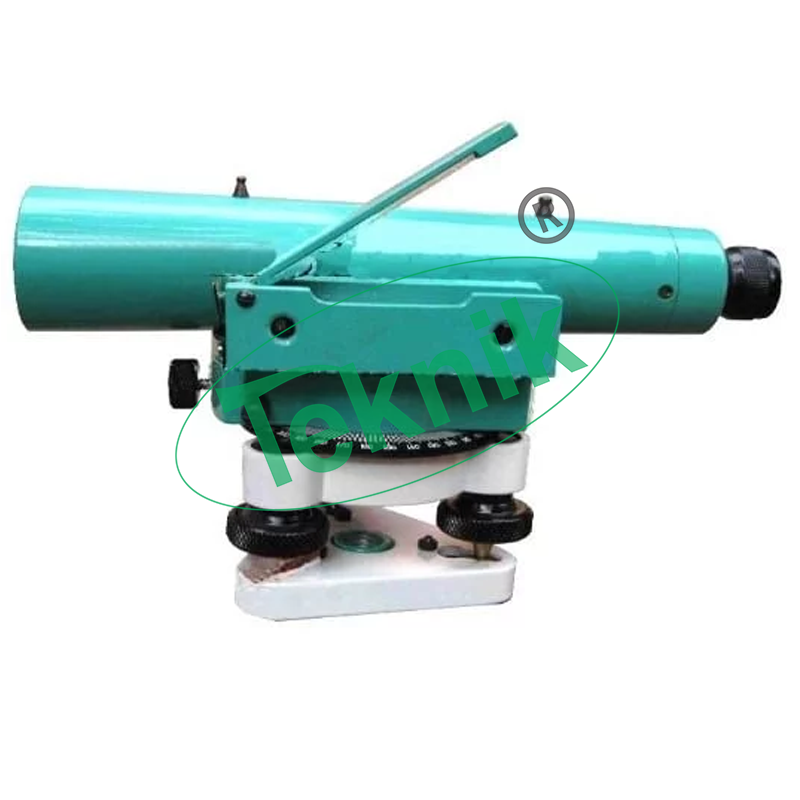

Dumpy Level: MTSE-03

The dumpy level is simple, compact and stable instrument. The telescope is rigidly fixed to its supports. Hence it cannot be rotated about its Longitudinal axis or cannot be removed from its support. The name dumpy is because of its compact and stable construction. The axis of telescope is perpendicular to the vertical axis of the level. The level tube is permanently placed so that its axis lies in the same vertical plane of the telescope but it is adjustable by means of captain head not at one end. The ray shade is provided to protect the object glass. A clamp and slow motion screw are provided in modern level to control the movement of spindle, about the vertical axis. The telescope has magnifying power of about thirty diameters. The level tube is graduated to 2mm divisions and it has normally a sensitiveness of 20 seconds of are per graduation. The telescope may be internally focusing or external Focusing type.

Adjustment of the level the level needs two type of adjustment:-

Temporary adjustment
Permanent adjustment Temporary adjustments of dumpy level these adjustments are performed at each set-up the level before taking any observation.

Features:-

Telescope
Eye-Piece
Sun Shade
Objective End
Longitudinal Bubble
Focusing Screws
Foot Screws
Upper parallel Plate
Diaphragm Adjusting Screws
Bubble Tube Adjusting Screws
Transverse Bubble Tube
Foot Plate
Simple construction with fewer movable parts
Fewer adjustments to be made
Due to the rigidity of dumpy levels, it retains its two adjustments for a long time.
High optical power
Reticule adjusting screw
Level vial
Azimuth tangent screw
Footplate
Leveling screw
Azimuth clamp
Leveling head
A telescope to provide a line of sight
A level tube to make the line of sight horizontal
A leveling head to level the instrument

Category: Survey Equipments

Description
Product Enquiry

Description

Technical Specification:-

Telescope Erect
Magnification 24X
Shortest Focusing Distance 1.5 meter
Longest Focusing Distance 200/300 meter
Objective Aperture 40 mm
Stadia consent 1:100
Addition constant 0
Bubble sensitivity 20”/2 mm
Nominal Accuracy 2-3 mm/km

Accessories:-

Dumpy Level
Tripod
E meter staff or English staffs
Chain
Plum bow

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
