LASER DISTANCE METER

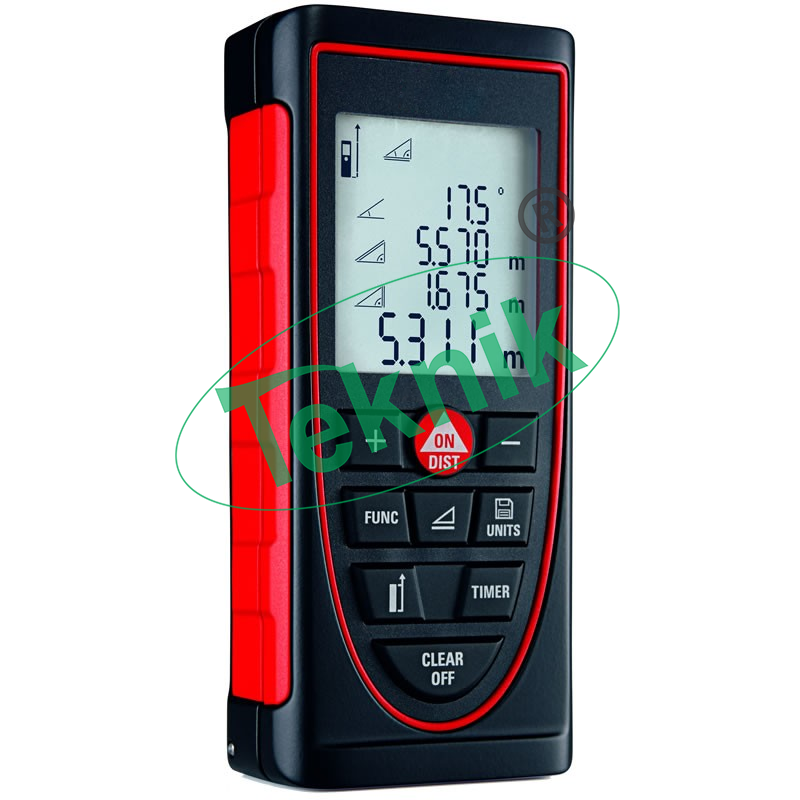

Laser Distance Meter: MTSE-04

The laser distance measurer sends out a laser pulse in a narrow beam towards the target point and detects the reflection. It then measures the time between those two points, and converts this information to a distance. This calculation is done through high-end optics and precision electronic circuitry.

This laser distance meter is attractive due to its ease of use and its high level of accuracy in the results recorded. Laser distance meter is made of high strength lightweight plastic and comes with a suitcase carrying case, depending on the model; it also may come with a lens, the World leader in producing optical distance measuring meters. The laser distance meter can measure and store the readings to a memory and determine the surface, the volume or height showing these on its display.

Features:-

Minimum maintenance
Easy to operate
Accurate reading
Dust and splash water protected
Power Range Technology
Automatic detection of multi-functional end-piece position
Smart Horizontal Mode
Rechargeable Li-Ion battery
Distance measuring
Surface calculation
Volume calculation
Height estimation
Measuring range of 100’ with 1/8″ accuracy for fast and easy measurements
One button, one function when selecting the unit to give volume, square feet, linear measurements as well as adds or subtract readings
Flat base unit offers better stability when measuring from flat surface
Green back lit display for increased visibility on dark job sites
Continuous measurement for layout applications

Category: Survey Equipments

Description
Product Enquiry

Description

Technical Specification:-

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 300m / 1000ft
Measuring Accuracy ±1mm
Measuring Units m, ft, in
X-Range Power Technology
Tilt sensor measuring range 360°
Accuracy to the laser beam – 0.1° / + 0.2°
Accuracy to the housing ± 0.1°
Horizontal 360°
Vertical – 40° to 80°
Distance in typical tolerance of the P2P function 2, 5, 10m
Leveling range ±5°
Leveling accuracy ±0.05°
Memory 50 Points Memory
Memory for pictures 80 Photos
Memory for CAD files 20 files, each with 30 points
Tripod thread Smart Base

Accessories:-

Tripod adaptor
Tripod aluminum
Plumb
Telescopic
Level rod
Hard carrying case.

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
