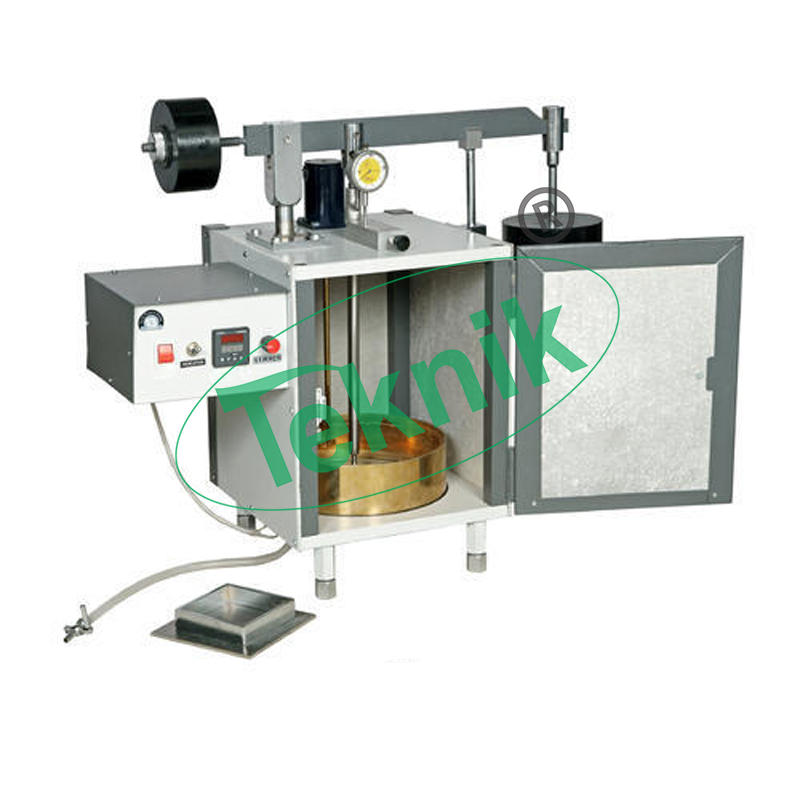

- It consist of an internally insulated cabinet to the base of which is fitted a water bath having two taps.
- The bath is heated by an immersion heater and the temperature is controlled with the thermostat at 35° ± 0.5° C.
- A 6.5 mm dia pin is loaded on the specimen by means of a lever to give a 31.7 Kg weight.
- A dial gauge 0.01 x 25 mm is provided to record the penetration of pin into the specimen.
- A cam which is operated by the handle is provided to lock or free the load transfer bar
- The ring can be adjusted and locked in position for initial setting of dial gauge.
- An adjustable ring is provided on the load transfer bar and a rest point.
- The penetration load can be adjusted and locked before the test is conducted.
- The load transfer bar passes through the support bracket and rest on the specimen hardness number of Mastic Asphalt for flooring
- Steel rod
