Core Drilling Machine

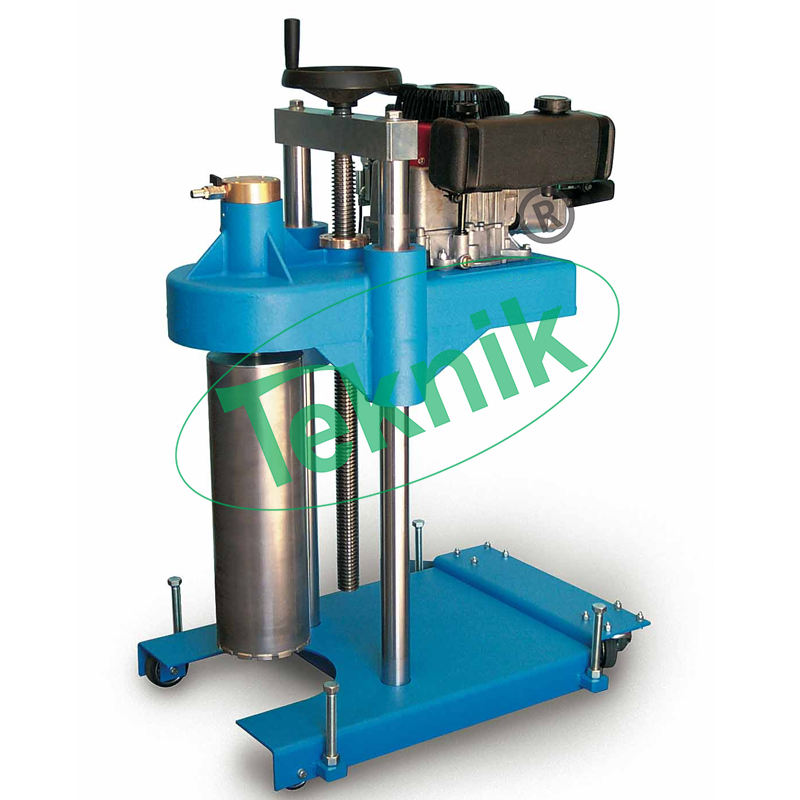

Core Drilling Machine: MTBA -09

Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials the machine is suitable for core samples of size up to 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable diesel engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.

Features:-

Exceptional performance
Longer functional life
Least maintenance
Rigid construction
Least maintenance
User-friendliness
Less power consumption
Compact design
Water Suppression
5 Core Barrel Sizes
6.5 Hp Motor
Motor Speed 1500 rpm
Portable
High degree of Stability

Description

Technical Specification:-

5 HP
4-stroke petrol engine
Rated Voltage: ~220 V / 50Hz,
Power Input: 2800W
No-Load Speed: 840rpm,
Shaft Male: 1 1/4″UNC
No-Load Speed 750 r.p.m.
Rated Frequency 50 / 60 Hz
Hard Samples, Water swivel: Built in the machines
Bits capacity: 25mm Dia – 150mm Dia Complete Combination the core drill includes drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out setting water swivel seal, hydraulic system.
Optional parts include water pump, rod for ceiling jack, water container, adapters.
Compact size with light weight as well as safety in operation
The drills are equipped with a friction clutch as well as over load current protection for protecting motor
High-strength gear to keep the drill working long hours constantly
Excellent speed, smooth and stability during drilling
Out setting water swivel seal facilitate making replacement when the seal worn out
Application the Core Drill is the industry standard, designed for concrete, reinforced concrete, Asphalt and brick in construction

Accessories:-

Thin wall diamond bits
Core barrel

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.
