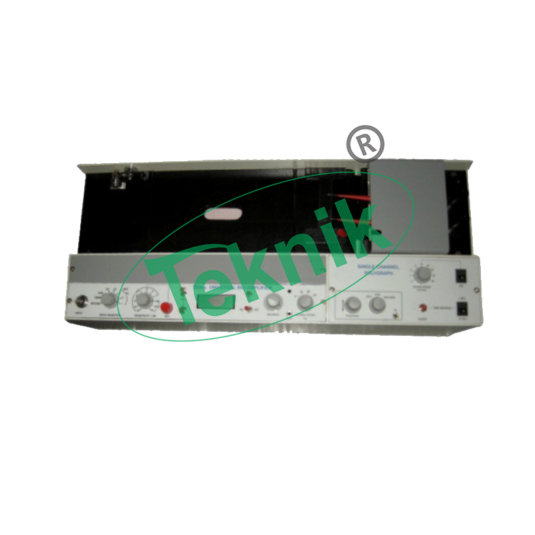

POLYGRAPH SINGLE CHANNEL
Polygraph Single Channel Model : EM-376
A. MAIN CONSOLE :
Standard table top housing:-
- 10 Speed noise free chart drive
- Ink pen recording system
- Power Supply
- Housing for amplifiers
- Time & Even Channel
B. AMPLIFIERS :
They are modular interchangeable and one can easily plug them in or out in few seconds. One will have to select an appropriate amplifier for the recording of a particulars parameter. The amplifiers are incorporated with 50Hz notch filter IN & OUT toggle switch to cut off unwanted 50 cycles interference.
Types of Amplifiers:-
- Ultra low noise, ultra low drift, ultra high sensitivity
- Universal Bio-amplifiers – Model a-201 – 01 No.
C. TRANSDUCERS :
- A transducer is a device which converts one form of Physical energy to electrical energy.
| Pressure Transducer strain Gauge
Volume Transducer (Plethysmograph) Heart, Smooth Muscle, isotonic Muscle, isometric force Transducers. Respiration Transducers (Thermister type) Photo electric Pulse Transducer Surface Temperature Probe Internal Temperature Probe Phono Cardiogram Transducer Respiration Belts (Stethograph Type) |
01 No.
01 No. 01 No. 01 No. 01 No. 01 No. 01 No. 01 No. 01 No. |
D. ACCESSORIES :
The following accessories are provided with each console :-
| EKG Limb electrodes with straps
EEG electrodes Extra pen ink writing Extra pen cradle Ink half liter capacity EEG Paste ECG Jelly tube Three pin junction box Fuses Earthin cord Instruction Manual Machine cover Chart Paper z fold |
2 Nos.
8 Nos. 1 No. 1 No. 1 No. 1 No. 1 No. 1 No. 6 Nos. 1 No. 1 No. 1 No. 2 No. |
