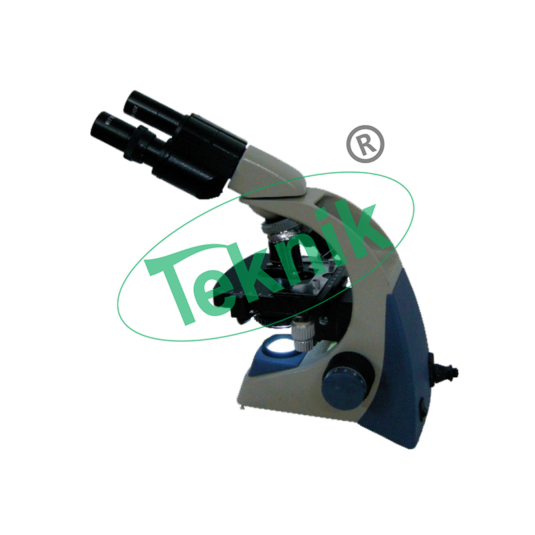

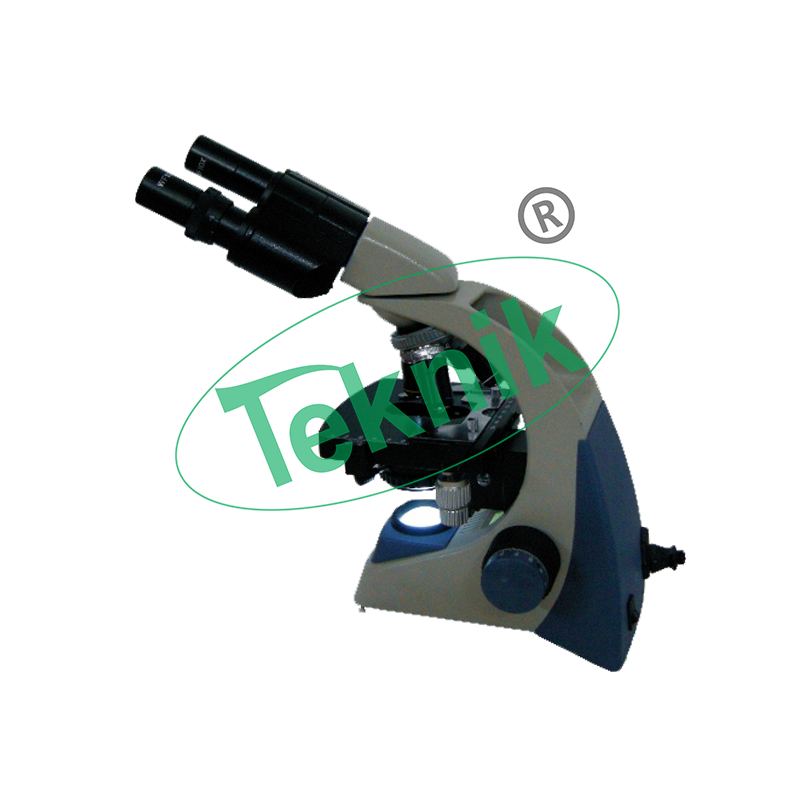

CO-AXIAL CONCEPT MICROSCOPE
CO-AXIAL CONCEPT MICROSCOPE : JZB
Co-Axial Concept Microscope is a quality research microscopy system with ball bearing guideways for highly sensitive focusing system free of even slightest back-lash.
Salient features:
- High transmission Binocular head with multi-layer coated prismatic system
- Co-axial focusing system.
- Co-axial mechanical stage for X & Y movements which provides extra large viewing area.
- Quadruple nose-piece with Ball Bearing mountings providing accurate alignment
- Built-in base light 6V-20W illumination with continuously variable intensity
- Abbe condenser N.A. 1.2 moveable on rack-n-pinion with iris diaphragm
- Optics specially designed to accommodate Neubauer chamber or Blood Cell counting chamber Interchangeable to inclined observation tube or Trinocular
- All lenses hard anti fungus coated.
Optical Combinations:
Achromatic Objectives : Parafo called and centered – 5X, 10X, 40X (spring loaded) and 100X (spring loaded)
Eyepieces: 10X (Paired) Super Wide Field
Other Model:
JZD: Trinocular Microscope
