CENTRIFUGAL PUMP UNIT

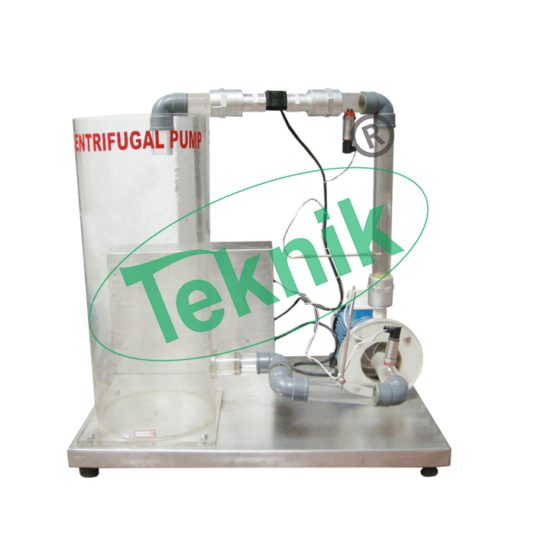

Centrifugal Pump Unit: MTFM-31

This accessory comprises a variable-speed pump assembly and independent discharge manifold interconnected by flexible tubing with quick release connectors. This auxiliary pump is intended to be used in conjunction with the basic Hydraulics Bench.
The auxiliary pump is mounted on a support plinth which stands adjacent to the Hydraulics Bench’s primary pump with which it is intended to be used. The pump speed is varied by an inverter drive. The motor speed output voltage and motor current can be monitored on the inverter display.
A compound pressure gauge is mounted on the pump inlet and a pressure gauge is mounted on the pump outlet. An independent discharge manifold incorporates a pressure gauge and flow control valve prior to a discharge pipe with diffuser.

Description

MEASUREMENT CAPABILITIES:-

Determining the relationship between head, discharge, speed, power and efficiency for a centrifugal pump at various speeds
Determining the head/flow rate characteristics of two similar pumps operating in either parallel or series configuration at the same speed

TECHNICAL SPECIFICATIONS:-

Variable-speed pump with similar performance characteristics to pump in Hydraulics Bench
Mounted on floor-standing plinth with variable speed inverter drive
Discharge manifold with flow control valve and pressure gauges
All hoses and fittings supplied for easy connection to Hydraulics Bench in either series or parallel configuration
Pump: Centrifugal type
Max head: 21 m H2O
Max flow: 1.35 l/s
Motor rating: 0.36kW
Speed controller: Frequency inverter
Speed range: 0-1500 rpm
Pressure gauge: 0-60 m H2O
Compound gauge: -10 to +32 m H2O

** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
