ORIFICE DISCHARGE APPARATUS

Orifice Discharge Apparatus : MTFM-37

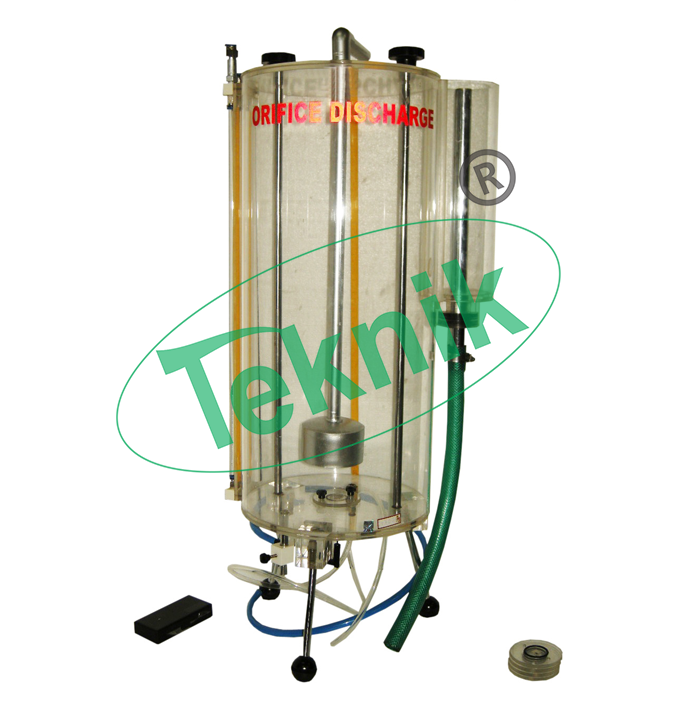

The Orifice Discharge accessory consists of a cylindrical clear acrylic tank which has an orifice fitted in the base. A traverse assembly is provided which enables a piton tube to be positioned anywhere in the jet. Attached to this piton tube is a fine wire which can be traversed across the jet to accurately measure the jet diameter and the vena contract diameter and so determine the contraction coefficient.

The piton head and the total head across the orifice are shown on manometer tubes adjacent to the tank. In addition to the sharp edged orifice six additional orifices with different profiles are supplied. All orifices have a common bore of 13 mm for direct comparison of performance.

Category: Fluid Mechanics Equipment
  • Description
  • Product Enquiry

Description

DEMONSTRATION CAPABILITIES:-

  • Determining the contraction and velocity coefficients
  • Calculating the discharge coefficient

TECHNICAL SPECIFICATIONS:-

  • Cylindrical clear acrylic tank with orifice fitted in base
  • Seven interchangeable orifices
  • Piton tube and wire-on micrometer to measure jet velocity and diameter
  • Quick-release fitting for easy connection to Hydraulics Bench
  • Educational software available as an option
  • Standard orifice: Sharp-edged 13mm diameter
  • Max head: 365mm
  • Traverse mechanism: Lead screw with adjusting nut calibrated 0.1mm per division



** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
