Hydraulic Flow Demonstrator: MTFM-40

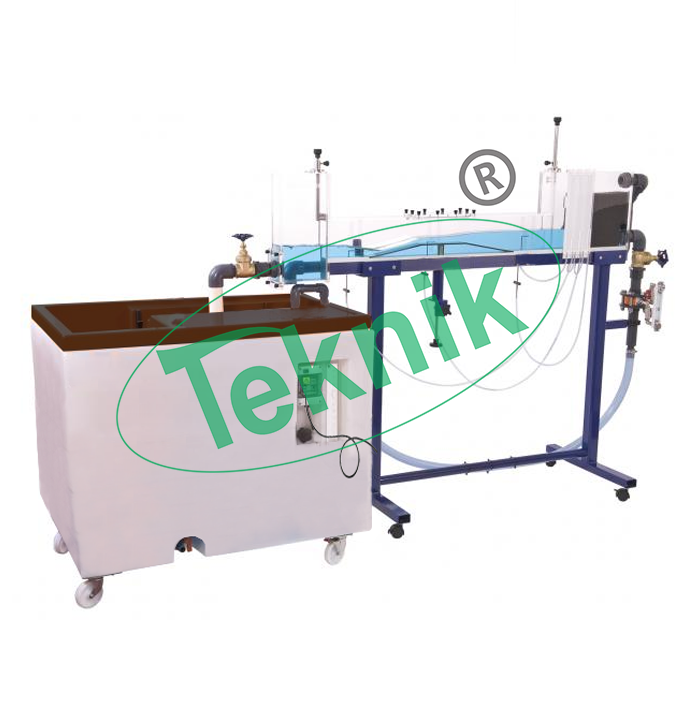

The flow channel of the Hydraulic Flow Demonstrator is constructed using clear acrylic for visibility and is supported by a floor-standing, metal frame fitted with castors for mobility. The flow channel consists of an inlet tank with overflow and flow stilling arrangement, a rectangular working section and a discharge tank. Control valves and adjustable weirs allow the flow conditions to be varied independently at the entry to and exit from the working section. The working section can be flooded to create a closed conduit or operate partially filled as an open channel. The most important feature of this equipment is the adjustable section of the bed which together with its transition section (ramps) may be raised and lowered using an external actuator while the water is still flowing. This facility affords a striking demonstration of the significance of channel critical depth.

It is also used to vary the cross section for demonstration of the Bernoulli equation in closed conduit flow. A removable panel in the roof of the working section allows models of typical hydraulic structures to be installed namely; a sharp-crested weir, broad-crested weir (also used to create a culvert) and ogee weir. Piton tubes and tapings connected to a multi-tube manometer allow total and static heads to be measured and compared at three locations in the working section. The height of the Piton tubes is adjustable allowing the velocity profile to be determined at any position between the bed and the roof of the working section.

Transparent scales allow all important heights and levels to be measured throughout the working section. The Hydraulic Flow Demonstrator is designed to be used in conjunction with a Hydraulics Bench, which provides a recalculating water supply and a volumetric measuring facility. The Flow Demonstrator can be used with an independent water supply of up to 1.6 l/s provided that water discharging from the channel can be intercepted.

Description

DEMONSTRATION CAPABILITIES:-

Closed Conduit Flow

Application of the Bernoulli and Continuity equations to converging and diverging flow
Effect of gradual and sudden changes in cross section (energy losses)
Using a contraction as a flow-measuring device
Using a Piton tube to measure velocity / velocity profile
Flow through a culvert

Open Channel Flow

Flow beneath an undershot weir (sluice gate)
Flow over sharp-crested, broad-crested and ogee weirs
Using hydraulic structures to measure flow in an open channel
Effect of changes in upstream and downstream water level
Characteristics of clinging, aerated, depressed and drowned napes
Subcritical critical and supercritical flow/ depth.
Changes in specific energy and control imposed by the minimum energy condition
Characteristics of hydraulic jumps
Force and energy conditions in a hydraulic jump
Flow patterns associated with hydraulic jumps
Flow over drop structures / energy dissipation
Changes in flow profile in relation to the Froude Number (predicting flow conditions in an open channel)
Observation of flow patterns associated with flow around hydraulic structures
Velocity of gravity waves in shallow water / Formation of surface waves near critical depth
Project work evaluation of user-constructed hydraulic structures

TECHNICAL SPECIFICATIONS:-

Maximum operating flow rate: 1.6 l/s
A floor-standing flow channel for use with a hydraulics bench
Working section 77mm wide 150mm high and 1100mm long
Clear acrylic sides for good visibility of flow patterns created
Stilling arrangement at inlet to promote smooth flow into the working section
Section of bed can be elevated continuously and locked at the required height
Discharge tank incorporates flow-control valve for convenience in setting up
Total and static heads indicated on multi-tube manometer connected to Piton tubes and static tapings at three locations in working section
Piton tubes mounted through bed of channel for ease of priming and height adjustment (can be traversed from floor to roof to measure velocity profile)
Transparent scales allow measurement of all important heights and levels
Models of hydraulic structures supplied include undershot weir (sluice gate) at the inlet, overshot weir at the outlet, sharp-crested weir, broad-crested weir (also used to create a culvert) and ogee weir
Suitable for project work with alternative hydraulic structures (user created)
Optional direct reading flow meter to aid setting up of demonstrations
