TURBINE SERVICE UNIT
Turbine Service Unit: MTFM-102

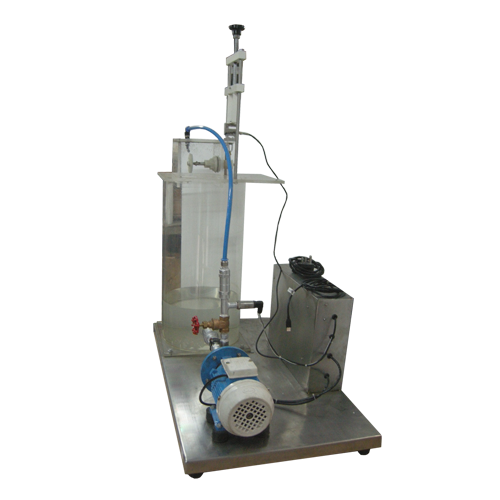

Turbine Service unit provides a water supply which is required to operate the turbine demonstrations. The service unit consists of a stainless steel base on which is mounted a water reservoir a compact three-phase pump and an electronic flow meter. The pump is controlled direct from the computer using the speed controller inside the USB interface console.
The turbine under test is connected to the dynamo-meter by a toothed drive belt. Load is applied to the turbine using a magnetic brake controlled directly from the computer. The outer casing of the brake is restrained from rotating by a lever arm which is connected to a load cell which allows the braking force and hence the torque produced to be directly measured. The dynamo-meter unit also incorporates an optical sensor which measures the rotational speed of the turbine.
TECHNICAL SPECIFICATIONS :
- Reservoir capacity : 28
- Max flow rate : 20 l/min
- Max head : 30 m
- Peripheral type pump providing up to 20 l/min or up to 30 m head
- Paddle wheel type flow meter
- Magnetic type dynamo-meter controlled from software
** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK ” keeps the right to modify the content in the product without prior notice.
