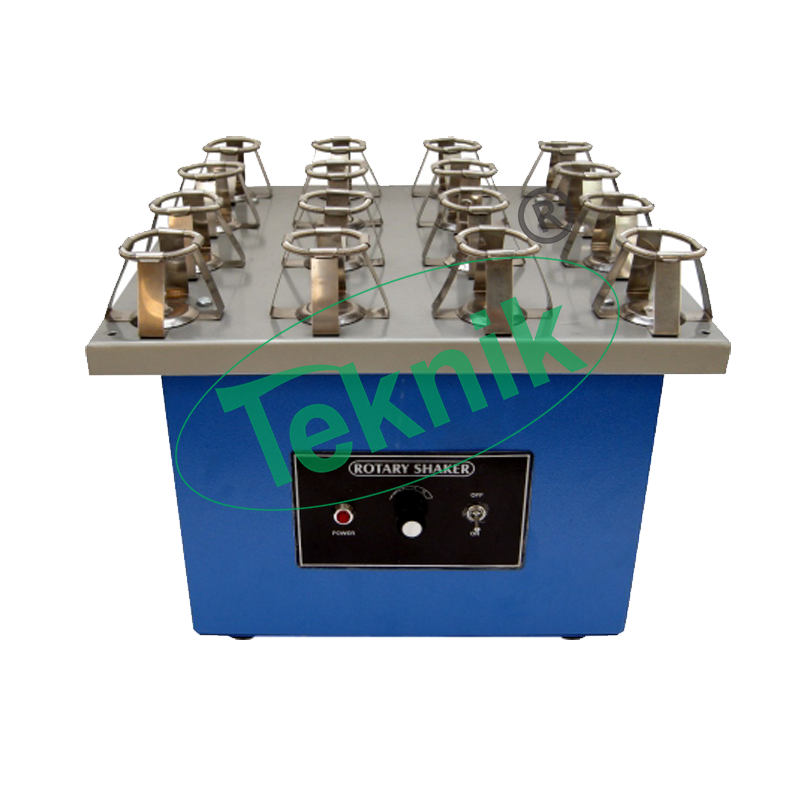

SHAKING MACHINE ROTARY (HORIZONTAL)
SHAKING MACHINE ROTARY (HORIZONTAL) : JEQ-5B
Continuous shaking of flasks from 100 to 500 ml capacity. Bench type table top model with platform with rubber discs/steel clamps mounted on ball-bearing crank-shafts to give an orbital motion to flasks within a diameter of 2″. Motor is coupled with V-belt with a pitch pulley and mounted on heavy angle iron frame. Machine supplied with fixed or variable speed controlled by mechanical speed controller.
To work on 220 V AC 50 Hz single phase.
| Platform Sizes | Holding Capacity | H.P. Motor | |
| (a) | 45 x 45 cms. | 25 flasks of 100 ml. | 0.25 |
| (b) | 45 x 45 cms. | 36 flasks of 50 ml. | 0.25 |
| (c) | 45 x 45 cms. | 16 flasks of 250 ml. | 0.25 |
| (d) | 55 x 55 cms. | 25 flasks of 250 ml. | 0.25 |
| (e) | 65 x 65 cms. | 36 flasks of 250 ml. | 0.50 |
| (f) | 100 x 100 cms. | 81 flasks of 250 ml. | 1.00 |
| (g) | 100 x 100 cms. | 81 flasks of 500 ml. | 1.00 |
Note: Other sizes and capacities can be fabricated on demand.
Optional Accessories:
- Digital RPM indicator.
- Automatic 0-60 minute timer.
