EXPERIMENTING WITH DIGITAL TV AND DTH
Experimenting with Digital TV and DTH: MTEV-07

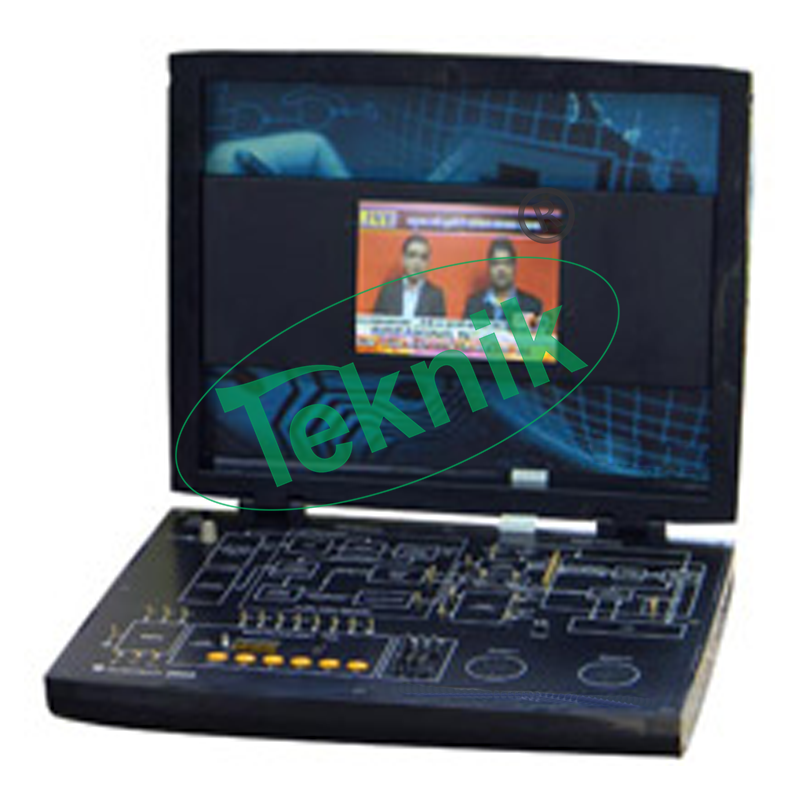

DTH (Direct to Home) is a satellite-aided TV rebroadcast system, featuring a compressed digital encoded signal for uplink / downlink. Today most of the DTH customers in developed television market get their programming through a Direct Broadcast Satellite (DSB) provider. Color LCD-DTH TV Training system is designed using latest semiconductor technology. It is an ideal training platform to learn the operation of Color LCD-DTH receivers. One of the main features of this TechBook is fault simulation to train on actual fault finding, by simulating faults on this platform. The complete block diagram of Color LCD-DTH TV is printed on the mimic. In addition the TechBook will be of immense value to practicing engineers and students engaged in study of LCD-DTH TV at the diploma and degree level.
FEATURES:-
- Portable design
- Comprehensive learning solution on LCD-DTH TV Technology
- Functional block diagram indicated on main board.
- Manual & remote control operation
- 5.7” TFT LCD (64k, Color LCD)
- Gold plated Test Points
- Fault creation and diagnosis
- E-Learning material
TECHNICAL SPECIFICATIONS:-
- Color TFT LCD : 5.7” TFT LCD (64k, Color LCD)
- Resolution (pixel) : 320 x 240 (RGB)
- RF Input : 950 – 2150 MHz
- Input Impedance :75W
- RF Output 470 MHz to 862MHz
- Dish Input : F – Connector
- Audio Output : Built in speakers (L/R)
- Video Output : PAL/NTSC
- IF Frequency : 70MHz
- Controls : Channel Up/Down, Volume
- Up/Down, Power On/Off and Reset
- Test Points: 34 nos. (Gold plated)
- Power Supply : 110V – 240V AC, 50Hz/60Hz
- Operating Conditions : 0-40 C, 85% RH
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.**
