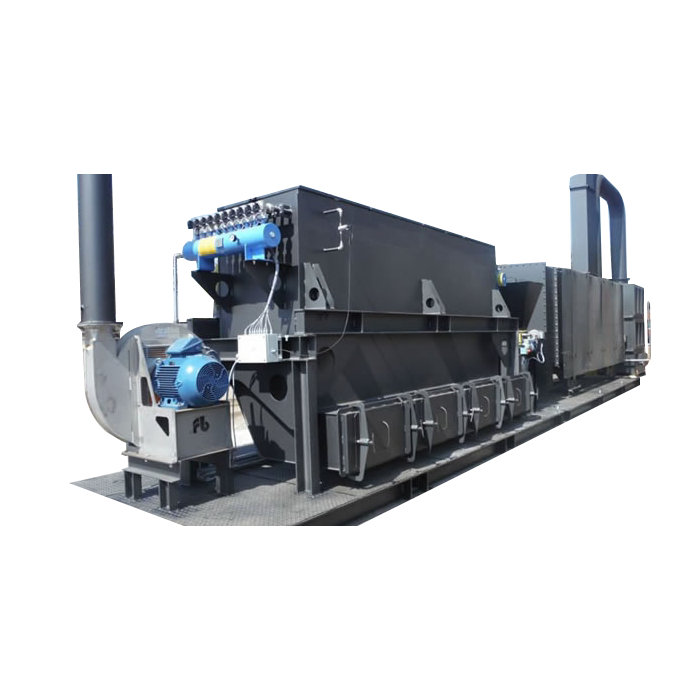

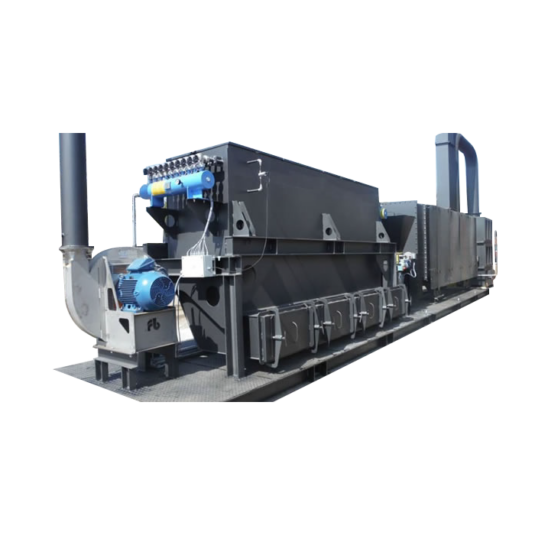

ELECTRONIC WASTE INCINERATOR : JKA-230EW
Electronic Waste Incinerator :
The waste generated by used electronic equipments like computers, invertors, transistors radio, PCb’s and other
industrial and house hold gadgets they are non-degradable waste and cause many problems in disposal of
such kind of components.
Why we should Incinerate
The integrated circuits consume much space and the cost of transportation is much higher therefore idea was
generated to incinerate it to reducing the volume and weight saving in logistic cost
The E-waste does not contain high percentage of combustible materials and therefore flame propagation in
absent making it difficult to incinerate in normal way. To minimize this problem we have developed the special combustion chamber where in the waste material is rotated in a cylinder and face the burner to facilitate the
burning.
The reduced ashes and unburn particles can be collected from the ash tray and rotating drum containing material that can be separated and recycled. The reduction in weight is nearly 10-20% and volume by 5-10 % making it convinet to ship for further separation at recycling plant.
The incinerator combustion chamber is designed for easy maintenance of all internal parts including refractory and isolation.
Operating Principal :
The disposal of waste is based on the principal of incineration of the waste so as to destroy any degradable
and infectious material and reduce it volume and mass without producing any type of pollution.
Design:
The design is based on the guidelines set by Central Pollution Control Board (CPCB)-India and normally
adopted by military installation all over the country and worldwide. The Efficient power is supplied by
electricity as well as oil burners for larger installation.
Specifications:
- Combustion efficiency 99%.
- Combustion Chamber : Dual Chamber
- Temperature of primary chamber is upto 1000°C and the secondary chamber is upto 1450°C.
- The secondary chamber gas residence time at is two seconds.
Power Requirement: Diesel, Electrical
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement.
