SINGLE PHASE & THREE PHASE CAPACITIVE LOAD
Single Phase & three Phase Capacitive Load: MTEE-28B

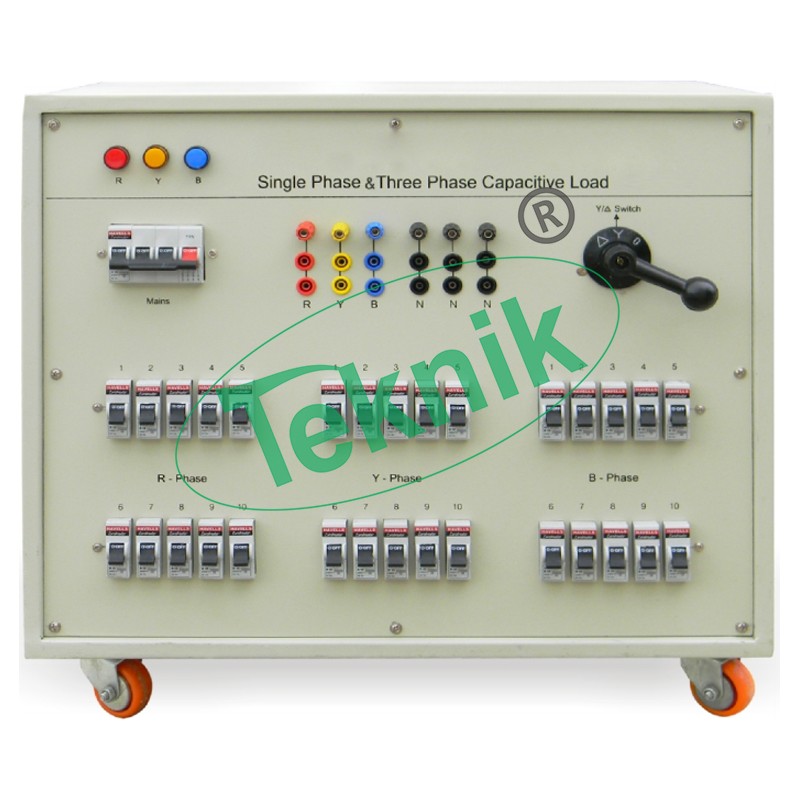

Single Phase & Three Phase Capacitive Load consists of three banks of switchable capacitors. These three banks can be used with Single Phase & Three Phase Systems.
The load banks are used to verify the performance of power source. However real loads are unpredictable and random in value hence standard loads are used and this stimulates environment for testing power sources.
The capacitive load bank provides a leading power factor is provided with a star and delta switch which facilitates the switching between star and delta connections.
The capacitors can be selected in different combinations with the help of MCBs on front panel. The load is mounted on a trolley to provide facility of movement in laboratories.
FEATURES:-
- Suitable for Single and Three Phase Operation
- Star/Delta switch for easy conversion
- Ten selectable load values on each bank
- Suitable for balanced and unbalanced load Conditions
- MCBs are used to switch loads and provide protection at the same time
- Provide with trolley for flexible movement
- Equipped with Supply Indication Lamps
- Designed by considering all the safety standards
- Learning material CD
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230V AC ±10%, 50Hz (Single Phase)
- Three Phase : 415V AC ±10%, 50Hz
- Current : 4.6A each phase
- Delta connection : 13A each phase
- Star/Delta Switch : 415V, 32A
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
