POWER MEASUREMENT BY TWO WATTMETER METHOD

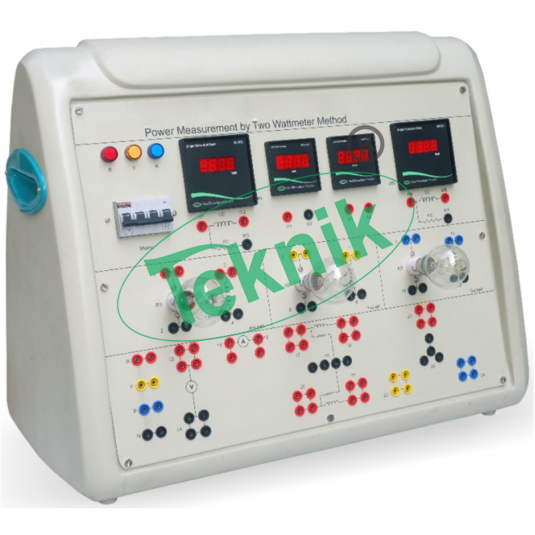

Power Measurement By Two Wattmeter Method: MTEE-03
Power Measurement by Two Wattmeter Method is an exclusive and useful product for Electrical laboratories. It is designed to explain the students, how total power is measured in a three phase circuit using only two watt meters.
With this product, student can study the power flow in three phase system and correspondingly calculate Active, Reactive and Apparent power.
Apart from this student can easily understand different three phase parameters like Line Voltage, Line Current, Phase Voltage, Phase Current and their mutual relationships to verify star and delta properties in three phase circuit.
FEATURES:-
- Inbuilt Inductive Load
- Facility to configure Star and Delta Load
- Control board consist of high grade FRP material to provide utmost safety to the users
- Provided with bulb holder to use load externally
- Equipped with supply indication lamps
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Compact Design
- Product Tutorial (CD)
TECHNICAL SPECIFICATIONS:-
- Mains Supply : Three Phase, 415V ±10%, 50Hz
- Load : Resistive Load (R) and
- Resistive-Inductive Load (RL)
- Digital Meters Used
- Wattmeter: 1500W (2 nos.)
- AC Voltmeter : 450V
- AC Ammeter : 5A
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
