MCB AND HRC FUSE TESTING SYSTEM

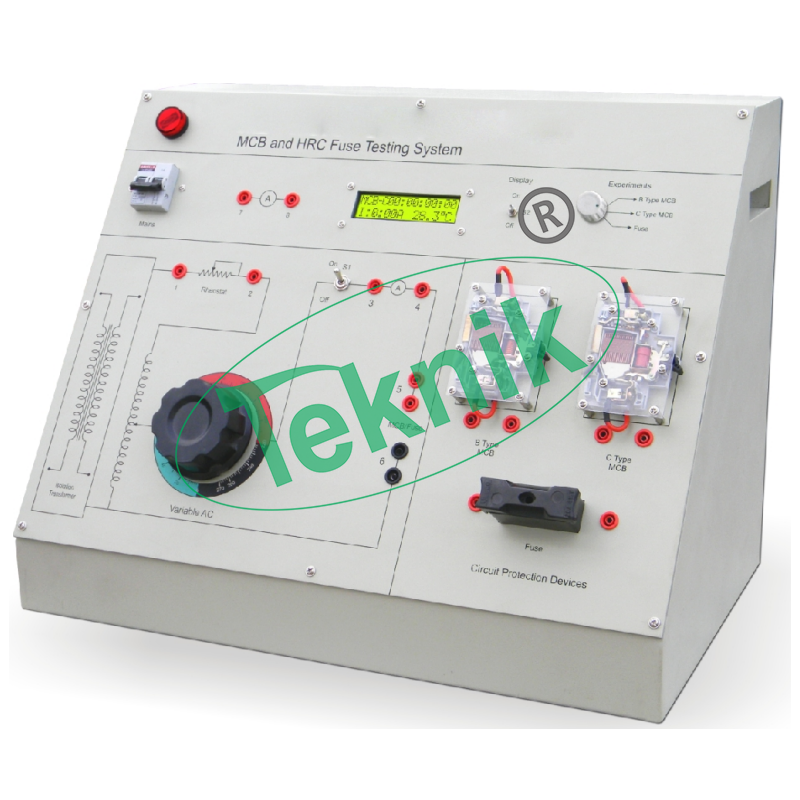

MCB and HRC Fuse Testing System: MTEE-16
MCB (Miniature Circuit Breaker) and HRC (High Rupturing Current Capacity) Fuse Testing System is designed to explain the operating behavior and characteristics of MCB’s and HRC fuse. It includes B type MCB, C type MCB and HRC fuse.
These are protective devices capable of carrying currents under normal circuit conditions and automatically break the circuit whenever over load or short circuit condition occurs provides complete learning contents to demonstrate the internal working of MCB’s and HRC fuse. The MCB’s are provided in transparent case to visualize the internal architectures.
Two precise integrated circuit based. Thermometers are provided on bimetal contactor MCB’s to analyze the temperature rise and fall. Digital timer is provided with start and stop facility to study the current versus tripping time characteristics. Inbuilt isolated variable AC Power Supply is provided for safety. The student will learn the difference in various classes of MCB’s.
FEATURES:-
- Alphanumeric 16X2 Big Font LCD for better visibility
- Power Supply using Transformer
- Inbuilt variable current injection facility
- Transparent MCB’s to understand internal architecture and its working
- Inbuilt Timer, Current & Temperature on LCD
- MCBs are mounted with temperature sensor for current temperature analysis
- Equipped with supply indication lamp
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Learning material CD
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 0-220V AC ±10%, 50Hz
- Single Phase
- Input : 230V
- Output : 0-270V
- Current : 10A
- Single Phase Transformer
- Rating : 1kVA
- Input : 230V
- Output : 230V
- Temperature Sensor (2 Nos.)
- Type : Mounting type
- Display Resolution : 0.1°C
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
