PPM MODULATION AND DEMODULATION TRAINER

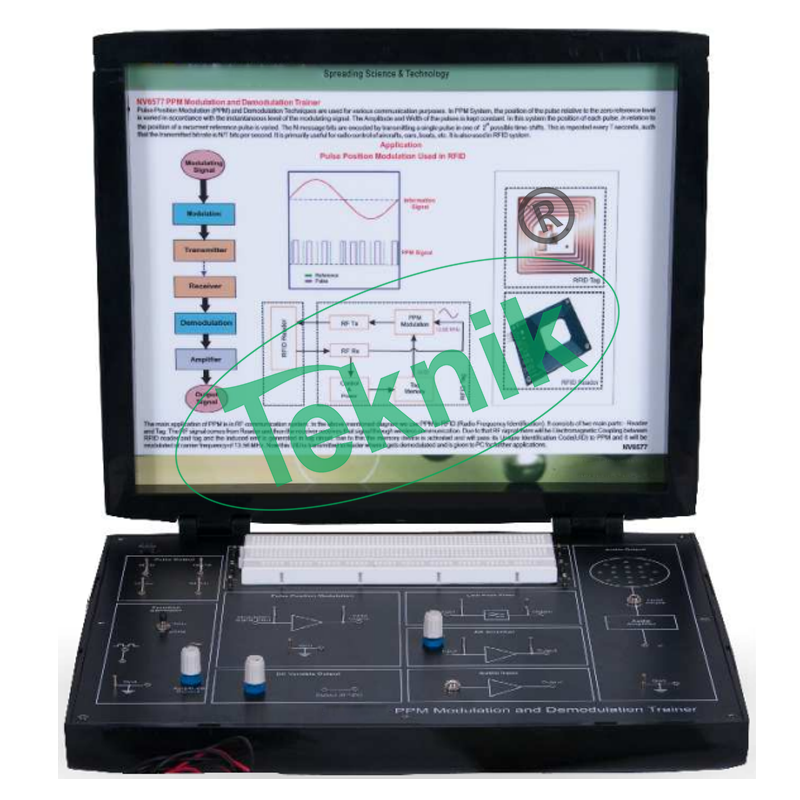

PPM Modulation and Demodulation Trainer: MTBE-51
PPM Modulation and Demodulation Trainer is a very prominent training product designed for students to elucidate them the concept of Modulation and Demodulation. PPM is a method of encoding information in a signal by varying the position of pulses. The undulated signal consists of a continuous train of pulses of constant frequency, duration and amplitude. During modulation the pulse positions are changed to reflect the information being encoded the amplitude and width of the pulse is kept constant in the system. PPM has the advantage of requiring constant transmitter power since the pulses are of constant amplitude and duration. It is widely used but has the disadvantage of depending on transmitter-receiver synchronization.
FEATURES:-
- Self-contained Trainer
- Selectable 4 pulse frequencies on board
- On board Sine and Square wave Generators
- Voice Communication using Dynamic Microphone and
- Speaker
- On Board Filter and AC Amplifier
- Functional Blocks indicated on board mimics
- Input-Output and test points provided on board
- In-built DC Power Supply
- Compact Size
SCOPE OF LEARNING:-
- To study the Pulse Position Modulation
- To study the Demodulation
- To study the Voice Modulation and Demodulation
TECHNICAL SPECIFICATIONS:-
- Pulse Output (frequency): 8kHz, 16kHz, 32kHz, 64kHz(approximate)
- Function Generators
- Sine wave : (Gain Adjustable)1kHz (12Vpp)2kHz (4Vpp)
- Square wave : 1kHz and 2kHz (6Vpp)
- Low Pass Filter : 4th order BW Filter
- Voice Communication : Voice Link using Dynamic
- Mini Microphone and Speaker
- AC Amplifier : With adjustable gain control
- DC Variable Output : 0-12V
- Power Supply : 230V ±10%, 50Hz
- Power Consumption : 3VA (approximate)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
