Clipper and Clamper Trainer: MTBE-25

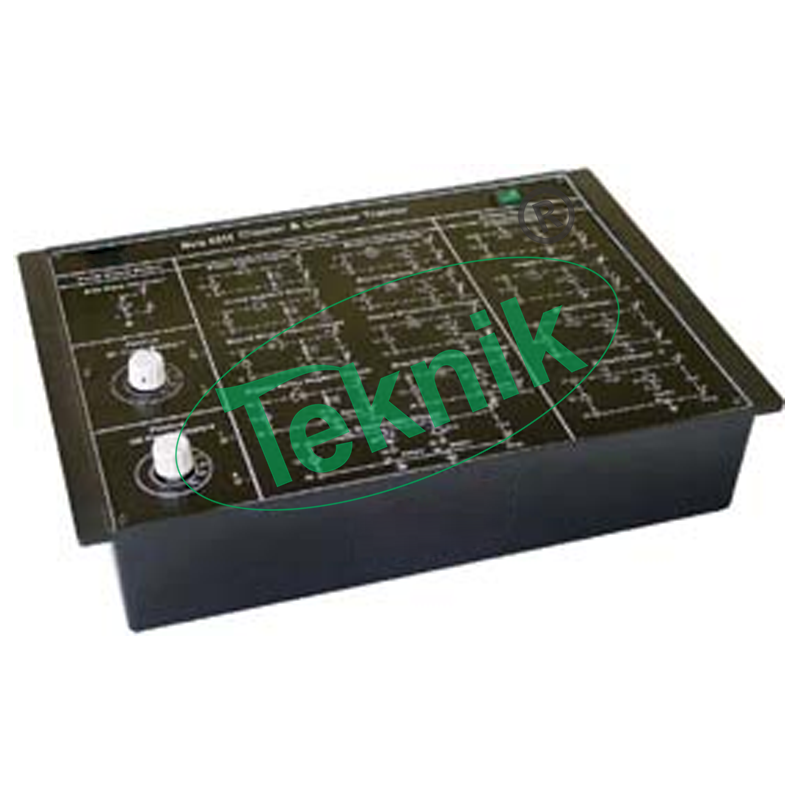

Clipper and Clamper Trainer has been designed specifically to study 13 different types of circuit for single level and two level clipping and 6 different types of circuit for clamping. The purpose of this training system is to demonstrate firstly, that clipper has the ability to “clip” OFF a portion of the input signal without distorting the remaining part of the input alternating waveform. Secondly, to observe that the reference voltage can also be used to control the clipping level of output i.e biased clipper. Thirdly, to demonstrate the clamping or the jumping action of a signal to a different DC level (either +ve or –ve).
FEATURES:-
- Built-in 1KHz Sine Wave Generator
- Good quality, reliable sockets and test points are provided
- Strongly supported by systematic operating instructions
- A low cost training system including many experiments
SCOPE OF LEARNING:-
- Study of Series Positive Clipper and Series NegativeClipper Circuits
- Study of Shunt Positive Clipper and Shunt NegativeClipper Circuits
- Study of Biased Series Positive Clipper and BiasedSeries Negative Clipper Circuits
- Study of Biased Shunt Positive Clipper and Biased
- Shunt Negative Clipper Circuits
- Study of Combination Clipper Circuit
- Study of Positive and Negative Clamper Circuits
- Study of Biased Clamper Circuits
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230 V ±10%, 50 Hz
- Sine Wave Generator : 1 KHz, 15V Vpp (approx.)
- DC Power Supply (2No.) : 0 – 5 V (vary through rotary switch for specific voltage level)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
