ANALOG-DIGITAL CIRCUITS DEVELOPMENT PLATFORM

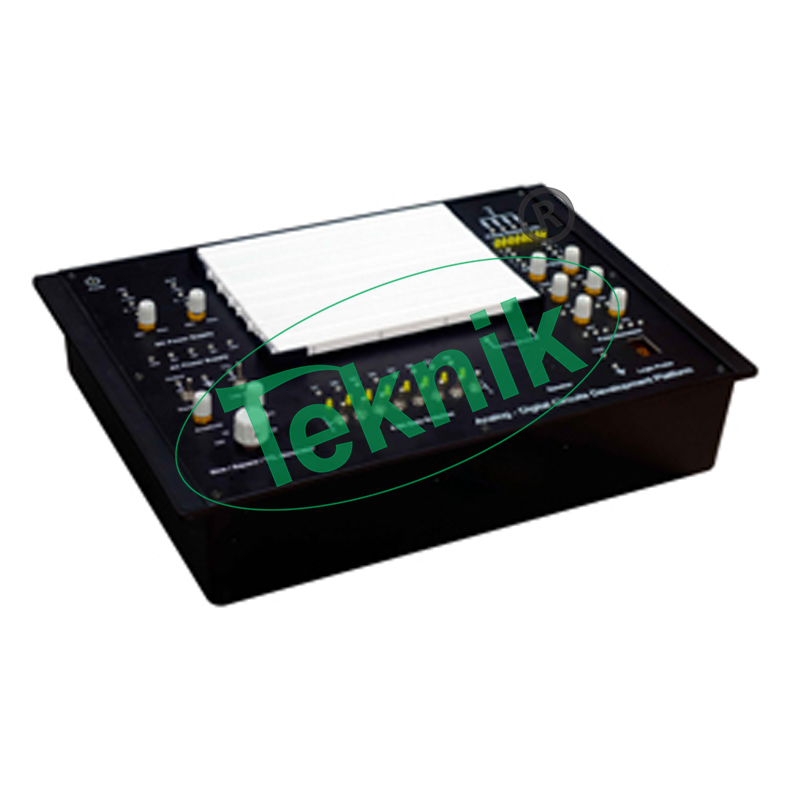

Analog-Digital Circuits Development Platform: MTBE-05A

Analog-Digital Circuits Development Platform is designed to fulfill requirement of performing experiments of analog and digital electronics in a single platform. This makes it easy to design, experiment with, and test circuitry without soldering. Students can explore a wide variety of electronic concepts simply by sticking components into the breadboard. All connections and controls are clearly marked and conveniently located.

It is very useful in analog and digital electronics laboratories for performing experiments in colleges and universities.

It is also useful to build and test circuits as well as making projects related to analog electronics or when learning the subject.

FEATURES:-

Self-contained and easy to operate
Functional blocks indicated on board mimic
On board DC and AC Power Supplies
On board Sine/Square/TTL Generator
On board 8 bit Data switches and 8 bit LED display
On board Logic Probe, Speaker, and Potentiometers
Solder less Breadboard
Free e-learning course

Description

ANALOG DIGITAL LAB COMPRISES OF FOLLOWING BLOCKS:-

DC Power Supplies
Sine/Square/TTL Generator
Speaker
Potentiometers
pulse Switch
AC Power Supply
8 bit Data Switches
Logic Probe
8 bit LED Display

SCOPE OF LEARNING:-

Active Notch filter
Zenger Diode as a Voltage Regulator
Transistor series Voltage Regulator
Transistor shunt Voltage Regulator
Low Pass Filter
High Pass Filter
Band Pass Filter
CE configuration of NPN transistor
CB configuration of NPN transistor
CC configuration of NPN transistor
Gain Characteristics of a No inverting Amplifier
Voltage Follower Configuration
Op Amp in Inverting Configuration
Operations of Wheatstone bridge
CE amplifier circuit
Universal Gate
Logic Gate
Binary Adder
2 Bit Binary Subtracted
Binary to Gray code conversion
Gray code to Binary code conversion
Binary to Excess-3 code conversion
Characteristics of various types of Flip-Flops
Crystal Oscillator
4 Bit Binary Up-Down Counter
Johnson Counter
4 Bit serial in parallel out Shift Register
8 to 3 Line Encoder
3 to 8 Line Decoder

TECHNICAL SPECIFICATIONS:-

Size of Breadboard : 172.5 mm x 128.5mm
Tie Points on Breadboard: 1685 no’s (solder less)
DC Power Supplies: +5V, 1A (fixed)
+15V, 1A (fixed)
-15V, 1A (fixed)
+15V, 200 mA (variable)
-15V, 200 mA (variable)
AC Supply: 5V-0V-5V, 10V-0V-10V can be used as 5V, 10V, 15V,
20V AC & also as center tap
Sine/Square/TTL Generator: 10Hz to 1MHz in 4 steps(variable in between the steps)
Amplitude : Sine wave- 0 to15Vpp
Square Wave- 0 to 10Vpp TTL-5V (fixed)
Fixed TTL (Clock): 0.1Hz
Data Switches: 8 no’s (Toggle switches)
pulse Switch: 1no
LED Display: 8 no’s
Logic Probe: Logic level indicator H/L for TT Level (7 segment display)
Potentiometers : 6 no’s (100W to 47KW)
Speaker: 8W/2W for audio use
Power Supply: 110-220V ±10%, 50/60Hz
Power Consumption: 8VA

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
