Laboratory Pulverizer

Laboratory Pulverizer: MTCT-18

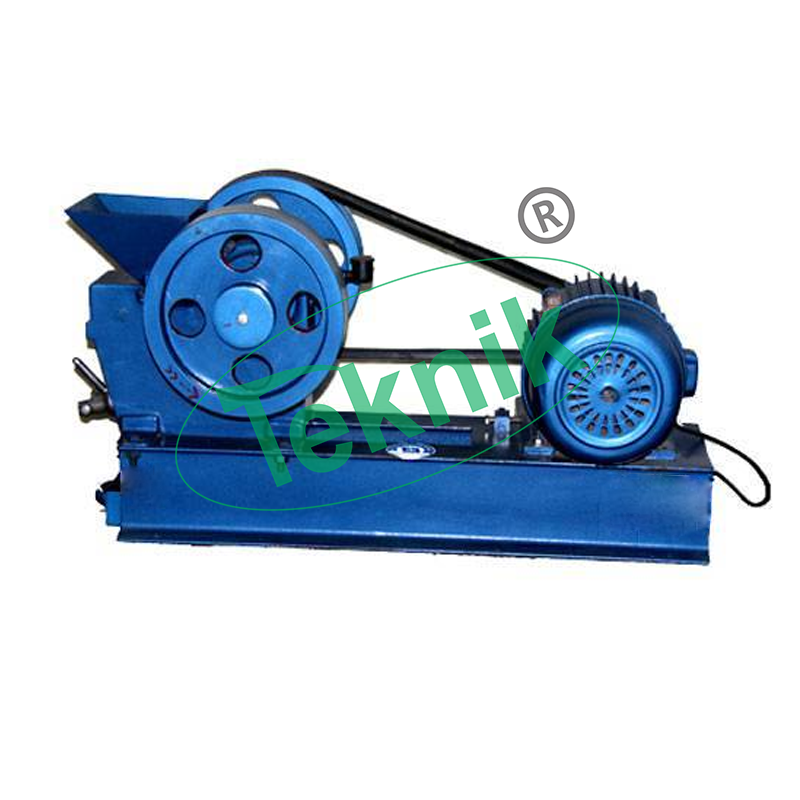

Laboratory Pulverize is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation. It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane. This feature gives added life to the moving parts and produces a sample of uniform fineness. Grinding is done between two discs, one of which is stationary and the other revolving eccentrically at high speed. The discs are made from heat treated machine metal. With the help of a convenient hand wheel, the six of the final product can be adjusted. This can be done, even while the machine is in operation. A self locking device holds the hinged grinding chamber in place and affords easy and quick access to it, for removal of ground samples & for cleaning. The Pulverize has a capacity of reducing about half a kilogram of Quartz type sample to 100 meshes in about minute. The Pulverize is supplied complete with a 3 H.P. Motor, a starter, “V” Belt pulley drive and mounting wired for 440 Volts, 3 phase A.C. 50 Hz. Disc Diameter : 175 mm. Maximum feed Size : 6 mm Yield : 250 gms/min size of finished product.

Features:-

Rust resistance
High efficiency
Low noise level
Durability
Good design
Affordable price

Category: Cement Testing Equipment

Description
Product Enquiry

Description

Technical Specification:-

Maximum feed size is 1/4 inch grinding is done between two discs one of which is stationary and the other revolving eccentrically at high speed
The apparatus is supplied with heat treated disc of 7 inches in diameter adjustment of size of product may be made by use of a convenient hand wheel while the machine is in operation or at rest
A self locking device holds the hinged grinding chamber in place
Reduces 1 pounds sample of quartz type material to 100 mesh in 1 minute
It is a self contained grinder furnished with a rotating disc having a planetary movement in a vertical plane
Voltage 440 Volts
Belt Pulley drive and mounting

Accessories:-

Pulverize plates

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
