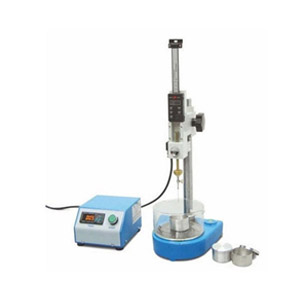

Fully Automatic Universal Penetrometer

Fully Automatic Universal Penetrometer: MTBA-27

It may be defined as the instrument reaches the test start point automatically, and it is supplied with an integrated led lamp the vertical movement is performed by a high precision stepper motor and measured by a contactless displacement transducer. The device also has the possibility to recall the vertical position for repeated tests. The test should be performed placing the penetration cup in thermostatically controlled water, using a suitable device as our water bath with thermoregulatory and immersed probe The apparatus is supplied complete with outfit for penetration of bituminous materials (needle, needle holder, 50 g weight, 150 g additional weight and 6 containers), centering guide, anodized aluminum base plate with spirit level and adjustable leveling feet. USB flash drive for saving data and test reports included.

Features:-

Fully Automatic operational Design
Compact design and rugged construction ensures long service life
Compact design also facilitates easy transport for field applications.
Sturdy cast iron base provides excellent support
Digital Alphanumerical LCD touch screen display with keyboard
Automatically timed programmable penetration
Motorized placement of penetrator on sample surface
Penetrometer arm automatically comes back to its home position at the end of 5 seconds penetration test
In-built Facility to tear and reset the measurement results
Display resolution of penetration depth in tenths of units (0.01mm)
Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface
Low voltage Illuminator mounted on flexible arms to assist an operator during testing
Built-in spirit level and leveling screws to ensure proper alignment
Weight of the Needle/Cone and plunger match the criteria Large, removable base accommodates grease worker cups and other and non-standard sample containers
Complete selection of Penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications (See optional accessories)
Supplied complete with Needle/cone, container and applicable weight
Longer functional life
Provides superior performance
Commendable accuracy

Category: Bitumen and Asphalt Testing Equipment

Description
Product Enquiry

Description

Technical Specification:-

Graduated division 400
Spindle Frictionless
Sample Container
No. of container 3
Automatic Digital Timer
Timer switch type Second, Minutes & Hour
Timer interval 1/10th sec.
Plunger Release with push of a button and automatically stop after the preset time duration
Cone
No. of cone 3
Angle 30°
Weight of cone spindle 80 gm
Gauge
No. of gauge 1
Transfer Dish
No. of Dish 1
Penetration Needle
No. of needle 5
Type Fully Hardened, tempered s. steel
Temper angle 8.7° ~ 9.7°

Accessories:-

Penetrometer needles
Sample cups
Glass transfer dish
Thermometers
Water chiller

** Note:- The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
