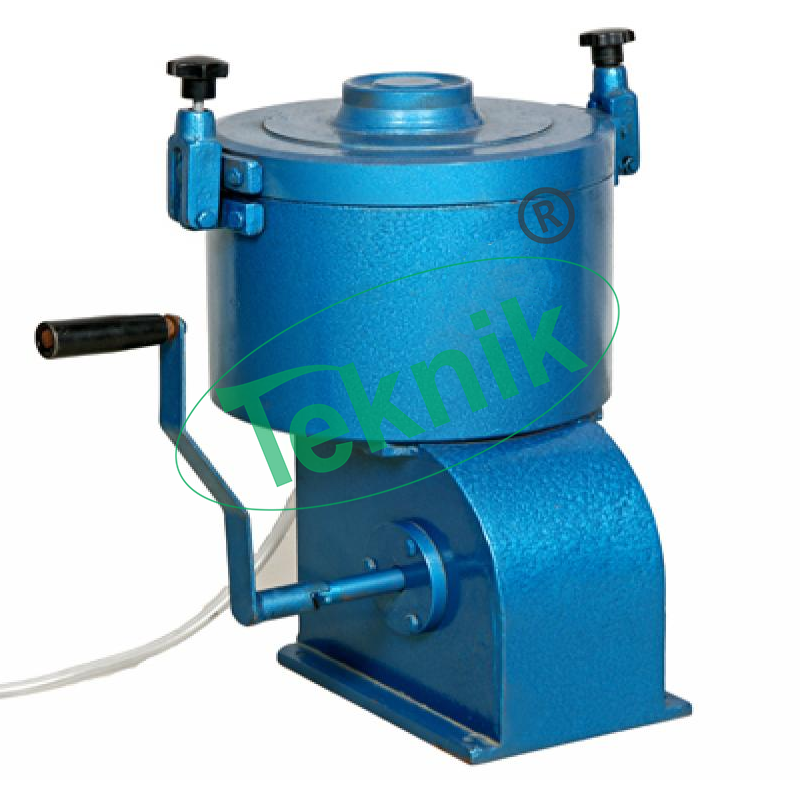

Bitumen Extractor Hand Operated

Bitumen Extractor Hand Operated: MTBA -03A

The Instrument is used for determination and checking of Bitumen percentage in bituminous mix, the mix is added with solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable Aluminum rotor bowl, Capacity 1500 Gms With a cap and tightening nut the bowl assembly is mounted on a vertical shaft, which protrudes from cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing.

Features:-

Drainage base plate with a recess for a porous stone and with an outlet valve, Metallic clamping ring, Drainage cap (Top plate with a recess for a porous stone and fitted with an inlet valve and an air release valve)
Dummy plate to serve as a false bottom curing compaction
Porous stone for drainage base plate, Porous stone for drainage cap
Set of three glass stand pipes approx. 6 mm dia., 10mm dia. and 20mm dia. mounted on a stand
3 meter long rubber connecting tube with pinch cock.
Durable
Resistance against corrosion
Excellent performance
Lightweight
High quality
Efficient

Description

Technical Specification:-

Material for Construction Stainless steel
We are mainly engaged in R&D and production of road construction
high-end road maintenance equipment, the Hand Operated Bitumen Sprayer
It consists of a removable aluminum rotor bowl, capacity 1500 gms, with a cap and tightening nut.
The bowl assembly is mounted on a vertical shaft which produces from a cast housing.
This shaft and the bowl is rotated fast manually by enclosed gears in the cast body and handle.
Solvent is introduced during the test through the holes in the cap of the housing.
A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.
Pavement Maintenance Material Series are the main 7 series of products we are serving for customers.

Accessories:-

Filter paper
Electronic balance
Analytical weight Box
Transfer Tray
Spatula
Solvent
Asbestos hand Gloves

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.
