Blank Mask Machine
BLANK MASK MACHINE
CODE: MT-FM1212
DESCRIPTION:

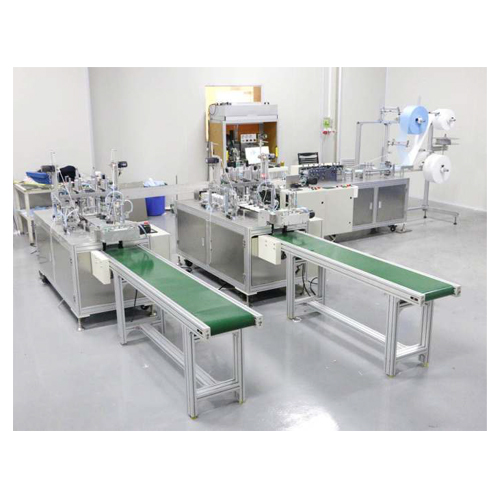

Automatic mask production line, also known as one to three mask production line, composed of a mask body
machine and three ear band composed of welding machine. Every minute can output 80-120 pieces of complete plane mask, mask specifications: 175*(80-100) mm 1-4 layers of non-woven planar filter type mask. Compared with the single independent type mask making machine, joined the automatic conveyor belt and the connecting port, the unique design in addition to improve the production efficiency, reduce artificial cost, is in order to minimize the artificial participation, and reduce the risks of a mask is pollution in the production process.
Three and Two layer compatible.

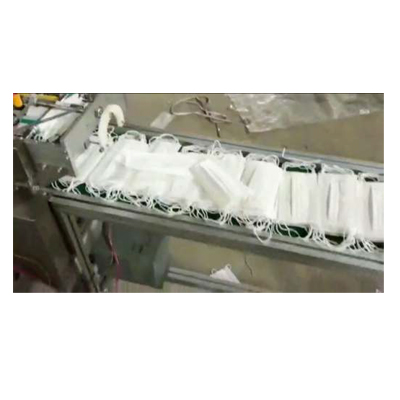

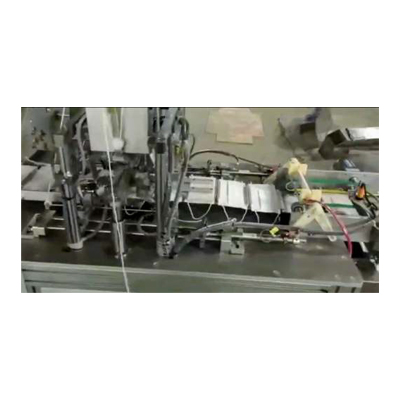

Automatic working from feeding to nose wire insert, lace sealing and cutting finish product. Servo and stepper motor.
PLC controlled.
304 steel rollers.
Aluminum guide and railing pillars.
Ultrasonic welding D2 steel horn.
Heavy metal frame.
SPECIFICATION:
- Capacity : 80-120 Pcs/Min
- Voltage : 220V
- Mask size : 17.5 X 9.5CM
- Non Woven Layers : 10-30GSM
- Power : 5.0Kw
- Weight : 950Kg
- Dimension Overall Single line : 4800 X 2800 X 2100mm
- Wooden Crate : 3.1 x 0.8 x 1.6 m
1.8 x 0.8 x 1.6 m
NOTE: For Continuous Improvement, above specification may change without Notice.
