AC/DC Demonstration Dynamo
AC/DC Demonstration Dynamo:MPH-EE-59

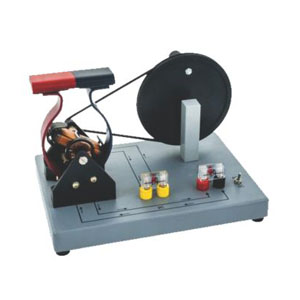

- Complete assembly mounted on a base and capable of generating both AC and DC simultaneously as indicated by the glowing of bulb present on the base.
- A twopole armature wound from enameled copper wire on insulated bobbin is mounted in shaft supported on moulded plastic legs on either side and is positioned between two curved iron strips.
- The shaft carries split ring commutator on one side for DC output and slip ring commutator on the other side for AC output, which is available through 4mm sockets mounted on respective sides and selectable through a sliding switch.
- Magnetic field provided by a permanent magnet on top of curved strips.
- The complete arrangement driven by a hand-cranked bigger driving wheel with handle through an endless rubber belt.
*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
