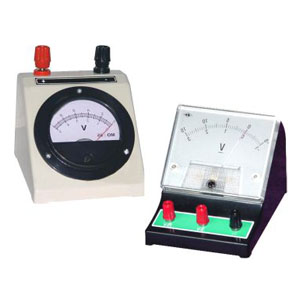

Voltmeter/Ammeter (Dual)
Voltmeter/Ammeter (Dual):MPH-EE-75
- MO-65, Round: Unbreakable, moulded, ABC Plastic White / Yellow/ Blue case,
- Accuracy ± 2.0 FSD, Scale Length about 50mm with knife edge pointer, with or without antiparallax mirror scale, Overall size about 80mm round, flush type mounting.
- MR-100, Rectangular: Unbreakable, moulded, ABC Plastic black / Blue case with clear transparent front window, Accuracy ± 2.0 FSD,
- Scale Length about 85mm with knife edge pointer, with or without
anti-parallax mirror scale, Overall size about 80x100mm rectangular, flush type mounting. - MO-65 / MR-100 Range MO-65 / MR-100Dual Range
• 0-1V • 0-1.5V • 0-3V • 0-2.5/A • 0-5/10A
• 0-5V • 0-10V • 0-25V • 0-1/5A • 0-10/100mA
• 0-50V • 0-100V • 0-250V • 0-1.5/3A • 0-25/250mA
• 0-300V • 0-600V • 0-15mV • 0-100/500mA
• 0-25mV • 0-30mV • 0-50mV
• 0-100mV • 0-150mV • 0-250mV • 0-500mV
Also Available in: • DC • AC
*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
