Steel Pipe Bending Machine
Steel Pipe Bending Machine : MT-400S
- Max. bending diameter of adapted carbon-steel pipe taking 1.5 D for example – Φ38.1×1.9
- Max. bending diameter of adapted stainless steel pipe, taking 1.5 D for example – Φ31.75×2.2
- Effective length of bended tube : 1700 mm
- Max. bending angle : 190°
- Max. bending radius : 200 mm
- Number of bended pipes in every piping : 2
- Max air pressure : 12 Mpa
- motor power : 4 KW
- L,W,H(CM) approx : 2500 x 730 x 1020
- Weight approx : 750 kg
- Hydraulic CNC control steel pipe bender
- Production Capacity : 100%

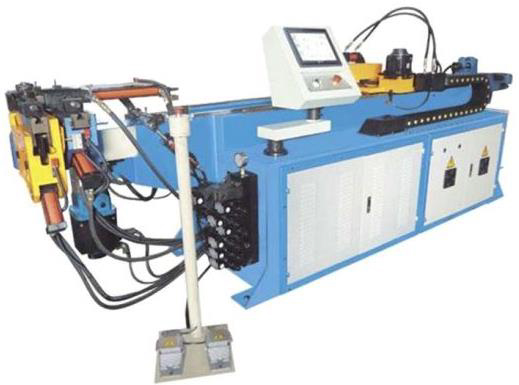

Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.
