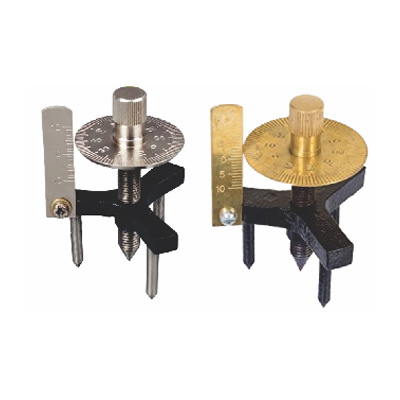

Spectrometer (Simple)
Spectrometer (Simple):MCM-M114
- Used primarily for the precise measurement of radius of curvature of curved surfaces such as lenses and mirrors.
- Stainless steel disc of about 40mm diameter, graduated 100 divisions, rests on the center on the center of a three pronged brass table, through a steel screw.
- Each prong carries a pointed leg of MS below it equidistant from each other.
- A vertical scale, graduated 10-0-10mm mounted on one of the prongs.
- Screw pitch 1mm, LC 0.01mm
- Screw pitch 0.05mm, LC 0.005mm
MCM-M114A: Also available in brass disc 40mm diameter
** Note:- The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
