signal genanrator
signal genanrator:MPH-EE-82
- Frequency Range : 0.01Hz to 1MHz in 8 decade ranges
- Frequency Indication : ±1% ±1 digit.
- output Impedance : 50 ohms.
- Frequency Indication Accuracy : ±1% +1 digit
- Output Waveforms : Sinusoidal, Triangle, Square, Ramp, Pulse, TTL (Sync) & DC Outputs.
- Sine Distortion : <1% (typical).
- Square Wave Rise / Fall Time : <75nsec.
- Frequency Stability : <0.5% of the set frequency (after oe Hour warm up).
- Duty Cycle : 10% to 90% variable.
- Maximum Output Voltage

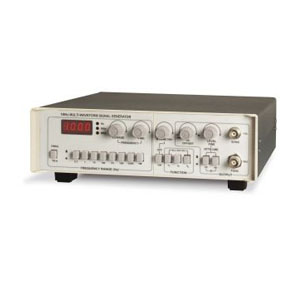

*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
