Ripple Tank Controller
Ripple Tank Controller:MPH-SW-2
- Two fully independent continuously variable DC outputs 0-4.5V each through a pair of colour coded 4mm safety sockets indicated with ripple motor and stroboscope motor supply respectively.
- A fixed 12V / 48W AC output to power the lamp that accompanies the ripple tank. A beep sound will generate in case of short circuit.
Specification:-
- Output voltage 0-4.5V DC regulated variable (for ripple motor & stroboscope motor)
- Output current 1A DC max. • AC output voltage 12V max. (for lamp)
- Output current 4A AC max. • Operating condition 0-40°C, 95 % Rh
- Operating voltage 110V/220V ±10%, 50Hz / 60Hz selectable via.
- slider switch

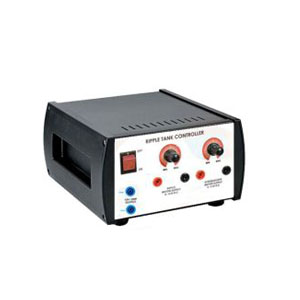

*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
