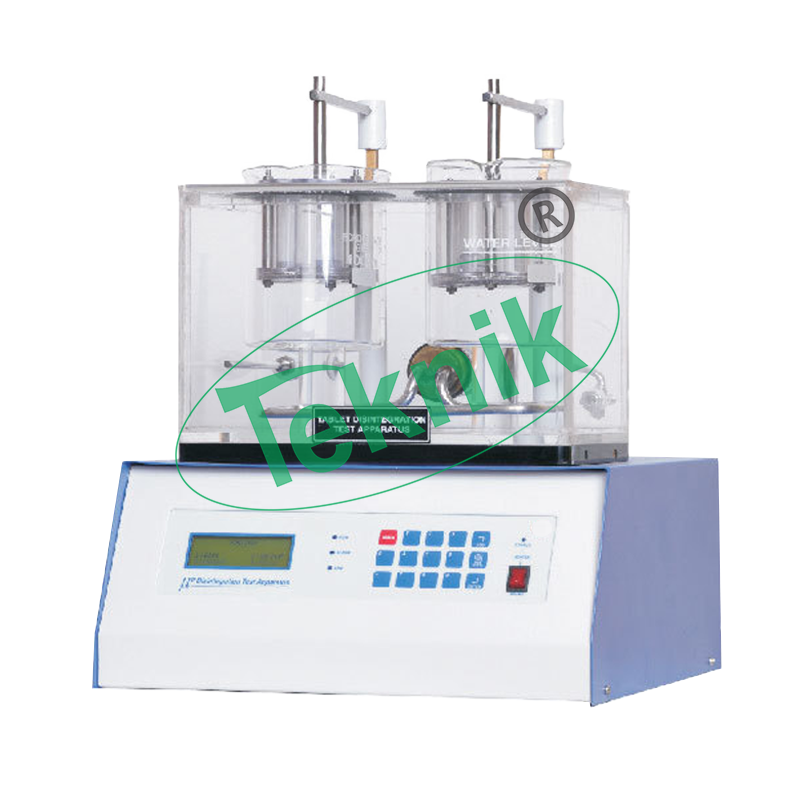

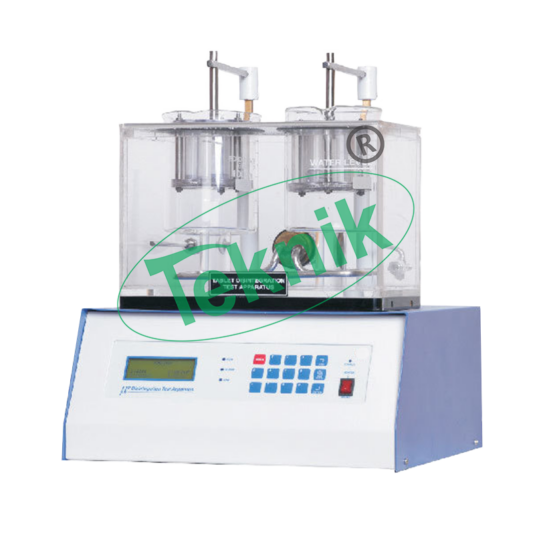

MICROPROCESSOR DISINTEGRATION TEST APPARATUS
MICROPROCESSOR DISINTEGRATION TEST APPARATUS : P-D1B
Features:
- Complies with USP, IP specifications
- Extremely useful for pharmaceutical labs
- Highly Accurate and Easy to Operate
- Baskets & DOWN movement as per IP/USP
Specifications :
- 20 x 4 Line Alphanumeric LCD with Backlit
- 15 Soft Touch Membrane Type Keys
- 20 Setups Storage Facility
- 200 Samples Storage Facility
- Printer Attachment Facility
- Audio Visual Indicators for System Status.
Specifications :
| Display | 20 x 4 line alphanumeric LCD display with backlit |
| Keyboard | 15 soft touch membrane keys |
| LED’s | 3 LED’s for Test status like Run, Alarm, End and one LED for heater on/off status. |
| Setup Data | Facility for 20 different test setups available |
| Printer | Provision for the attachment of dot-matrix printer |
| Speed | 55 mm. 30 ± 1 strokes per minute |
| Resolution | 1 Sec – 99 Minutes |
| Temp. Range | 20 °C – 40 °C |
| Temp. Accuracy | ± 0.2 °C |
| Temp. Control | Microprocessor based using PT100/Semiconductor Sensor |
| Reaction Beaker | 1000 ml |
| Heater | 1 KW |
| Power | 230 V ± 10% AC, 50 Hz |
Accessories:
- Main Unit with Acrylic Tank and Rectangular Cover Plate
- Reaction Vessel – capacity 1000 ml – 2 Nos.
- Two USP Baskets with 6 Tubes and 6 guided Discs, each
- External Temperature Sensor
- Mains Lead
- Instruction Manual
- Dust Cover
