Multi-Pump Test Rig: MTFM-11

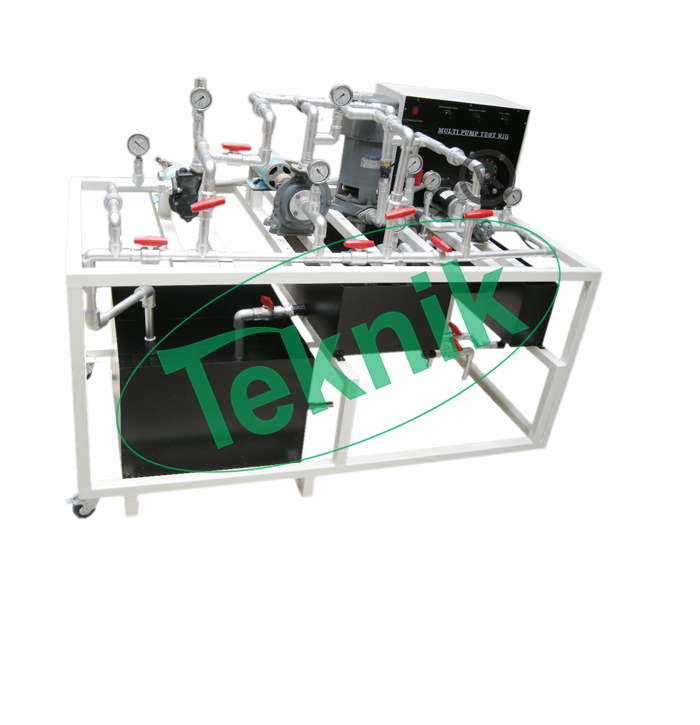

The equipment comprises a water reservoir and five pump positions (four active). Each pump position uses pipe work and sensors optimized to the type of pumps it is intended for. Positions 1, 2a and 2b are optimized for high flows at low heads, such as the rot dynamic pumps, whereas positions 3 and 4 are suitable for lower flows but higher pressures as obtained from the positive displacement pumps. Positions 2a and 2b are mutually exclusive as they share the same motor drive. Switching between any of the four installed active pumps is simple requiring only isolating valve changes and control panel selection.

Changing over an installed pump for one of the other options is still straight forward but requires plumbing changes topping up the tank with water and reprogramming some inverter settings.

A PC is used to set the required speed of the pump(s) on test. A separate mimic diagram for the selected pump(s) on test displays the important measured and calculated variables. The following table defines which types of pumps are available for each position.

Description

DEMONSTRATION CAPABILITIES:-

Determining the effect of speed on the performance of pumps.
Understanding the difference between rot dynamic pumps and positive displacement pumps.
Understanding the effect of system resistance.
Investigating the effect of suction losses on a centrifugal pump.

TECHNICAL SPECIFICATIONS:-

For rot dynamic pumps:

Pressure head vs. flow
Power absorbed vs. flow
Pump efficiency vs. flow

For positive displacement pumps:

Flow vs. pressure head
Power absorbed vs. pressure head
Volumetric efficiency vs. pressure head

Contains five different pump positions (four active at the same time). Digital readout enables mounting of selected pump
Centrifugal pump and gear pump supplied as standard
Axial pump, flexible impeller pump, turbine pump, diaphragm pump, plunger pump and a second centrifugal pump are all available as accessories
Series/parallel pump demonstrations can be performed with the second centrifugal pump option
Control valve incorporated upstream of each pump to demonstrate the effect of suction loss on performance
A PC is used to set the required speed of the pump(s) on test. A separate mimic diagram for the selected pump(s) on test displays the important measured and calculated variables
Electronic measurement of flow, pressure head, suction head and motor torque
Optional volumetric flow measurement system for reciprocating pumps
Data logging and educational software included
